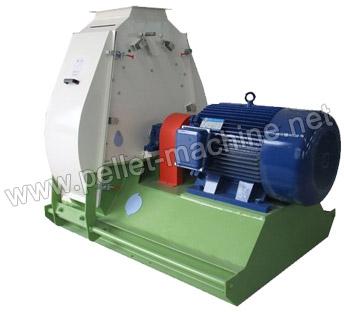

Water Drop Hammer Mill, Brand Name : EN

We are offering water drop hammer mill.
About water drop hammer mill
water drop hammer mill is ideal grinding equipment to process all types of animal feed from grains such as corn, broomcorn, wheat, barley, bean and ground cakes. The water drop design is also suitable for cellulose, materials with high moisture of oil content and materials need fine grinding, thus it is a necessity in many beverage workshops and feed processing plants.
Water drop hammer mill working principle
raw materials are fed from the top of a matched feeder, running through feeding plates on both sides to the grinding room. Under the force of adjustable rotating hammers and friction between screen plates, raw materials are grinded. Then the materials are discharged from the outlet by the push forced by air circulation.
Water drop hammer mill features
adopts thick steel material, steady and durable performance.
The hammers and rotors are made of wear-resistant materials.
Motor and rollers are installed on the same frame which makes a direct transmission.
The rollers can work on both directions with slight vibration.
Energy conservation, electricity consumption is 5.5kw/h, lower than average 6.7kw/h .
Water drop hammer mill specification
model sdh-zw-29c sdh-zw-38c sdh-zw-50c
rotor diameter 1120mm 1120mm 1120mm
spindle speed 1480rpm 1480rpm 1480rpm
hammer speed 86.5m/s 86.5m/s 86.5m/s
grinding room width 290mm 380mm 500mm
hammer no. 54 64 90
