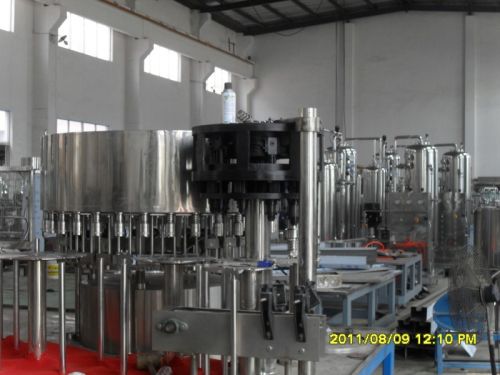

SS304 Water Filling Machine

We Offer Water filling machine.
1.it has functions of rinsing filling sealing
2.it works automatic and controlled by PLC
3.The main material adopts good quality SS304 and 316
4.the main component parts adopts famous brand such as Mitsubishi , Siemens
5.Gravity filling vale with high flow makes filling faster and without liquid loss.
model
CGF16-12-6
CGF18-18-6
CGF24-24-8
CGF32-32-10
production capacity(500ml)(b/h)
2000-4000
4000-6000
8000-10000
12000-15000(0.5L)
filling precision
≤±5MM(Liquid Level)
polyester bottle standard(mm)
bottle diameter40-80;
≤±5MM(Liquid Level)
height
height:130-280
(Height):150-320
(Height):150-320
(Height):150-320
suitable cap shape
Plastic Screw Cap
water pressure of washing bottle(MPa)
0.18
0.18
0.18
0.18
water consumption for water bottle (kg/h)
800
1600
2500
3500
Spraying position
5
5
6
12
dripping bottle position
3
3
3.5
7
gas source pressure(Mpa)
normal pressure
normal pressure
normal pressure
normal pressure
gas consumption(m3/mm)
0.3
0.3
0.4
0.5
total power
4.23
5.03
6.57
8.63
total weight
2000
3500
5500
8000
dimension(L*W*H)
2100×1500×2200
2450×1800×2200
2750×2180×2200
3500×2200×2250
