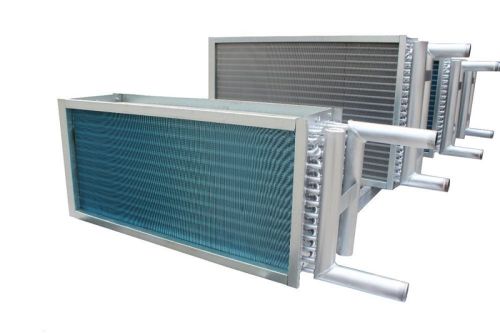

Water/Fluid Cooler Copper, Brand Name : Quanbang

General Information
Waterliquid cooler is used to cool the air using the chilled waterliquid in the core tube. The chilled water brings the absorbed heat back to the refrigeration system, release heat and lower temperature, then brought back to the cooling coil again to cool the air, and achieve the purpose of cooling and dehumidification. Core tube is normally made of copper; expanded copper or expanded aluminum structure is applied for fins, which enhances the heat transfer performance of the cooler. Other materials are also available upon request.
Field of Application
-HVAC industry
-electronic industry
-pharmaceutical industry
-Industrial and commercial refrigeration
Specification
Advantage:
-good heat transfer performance
-compact structure
-long life and safe
Core tube material: copper
Fin material: aluminum, copper
Tubefin bond: expanded
Tube arrangement: staggered
Core tube external diameter: φ15.88
Core tube wall thickness: 0.75mm
Fin thickness: 0.4mm
Fin spacing: 3mm
Temperature range: 5~30℃
Order Information
PN Description: WC-XYZ-N
Note: X should be replaced into CO
Y should be replaced into CO or A
Z should be replaced into EP
N means the power needed
CO-copper
A-aluminum
EP-expanded
