Water Gate Valve
Our Range:Butterfly Valve,Gate Valve,Check Valve,Globe Valve,Ball Valve,Y Strainer,Rubber Joint

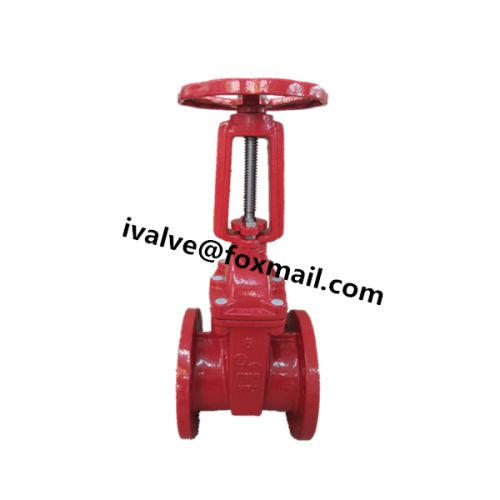

AWWA Resilient Seat Gate Valve
SpecificationsÂÂÂ
1.Suitable media: Water.
2.Face-to-face conform to ANSIASME B16.10.
3.Nominal diameter: DN40~DN600 (1 12"~24").
4.Tightness check: AWWA C509C515 API 598ISO 5208EN12226-1.
5.Operator: Cap top, hand wheel, Gear box, electric actuator, etc.
6.Flange: ANSIASME B16.1 ANSI B16.5 Class 125, ANSIAWWA C11021.10.
7.Working temperature:-20 to 120 centigrade . (EPDM:-20 to 120, NBR: -10 to 80).
8.Working pressure: Class125, class150, 250 psi (2"~12"), 200 psi (14"~24"), 150 psi.
Main parts materials
A)Seat: EPDMNBRBrass.
B)Gland follower: brassductile iron.
C)Bolt and nut: stainless steel, steel with zinc.
D)Stem: stainless steel, brass, bronze, steel with zinc.
E)Hand-wheel: ductile iron malleable Ironcarbon steel.
F)BodyBonnetDisc: cast ironductile ironCIDIGG25GGG40GGG50HT200QT450.
Delivery & Packaging
Delivery Detail: General within 30 days or according to the order quantity.
Packaging Detail: Plywood case. (each pc into one bubble plastic bag, several pcs into one Plywood case).
