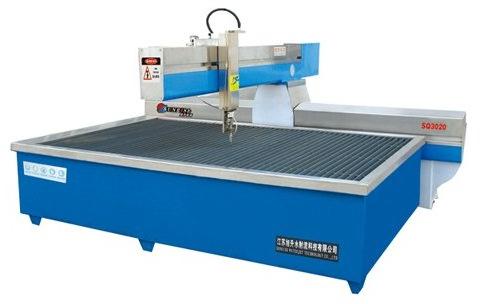

Water Jet Cutting Machine, Brand Name : JETE

Water jet cutting machine\r\rTraverse speed: 0~12000mm/min\rControl Accuracy: ± 0.01mm\rCutting Accuracy: ± 0.1mm\rWidth of Incision: 0.4~1.2mm\rCommon configuration: Imported high precision zero clearance Ball Screw and Line rail.\r\rImported digital AC servo system.\rFull-automatic lubrication system.\rDedicated Ceramics cutting fixture.\r\rFull Set of UHP Generator from Germany\rPressure Range 0~415MPa\rMotor Power 50HP/37KW\rPower Supply 50Hz/380V\rPressurization Rate 20: 1\r\rKMT Cutting Head\rIntegrated cutting assembly\rAbrasive waterjet nozzle is ROCTEC brand from USA\rRuby nozzle, Aperture: 0.17mm/0.25mm/0.26/0.28\rUHP Pump system\r\rPneumatic UHP switch.\rCNC -aided automatic control.\rPressure blocking and adjustable low pressure drilling function.\rTube between Generator and Machine is NOVA brand from Switzerland\rSand Control system\r\rAdjustable sand control Valve\rManual sand supply (Automatic supply system is available )\rCapacity of sand tank: 10Km\rWater switch system\rAdjustable UHP switch assembly\rWater Cutting Dedicated Software\rGT (developed with Nanjing University) or WH(Shanghai) software, can read\rDrawing very fast.\rCAD/CAM system Model: GT-card.\rCompatible format: DXF, DWG, IGS, PRT, ASC, STL, NFL, STEP, etc.\r\rCan automatically transform, adjust and add special parameters according to the Material, thickness and processing demand. Enlarge the database automatically. Read CAD drawing and scan scan BWP format drawing, and programming Automatically Can generate the cutting path and optimize cutting order.\rCan automatically add engage and retract line.\rAutomatically compensate the radius of the cutting head.\rBreakpoint memory.\rCan simulate the cutting process on the computer.\rCan generate the NC program.\rDNC Transport and cutting simultaneously.\rCan complete any complicate plane cutting\r\rAfter service\rWhole-life service, refer to the warranty card.\rOffer free training to the technician of the buyer.\rOverseas training fees should be undertook by the buyer.\r\rInstall and operating train content\rThe basic principle of water jet cutting machine.\rThe principle of UHP system and maintenance.\rUHP seal and the replacement of component.\rHow to Judge and eliminate common fault.\rThe operation of control software.\rNC programming.\r\rThe maintenance and protection of cutting platform.\rMaintenance and replacement of high pressure water switch, cutting head and sand control valve.\rFree installation and debugging.\rAlert: Overseas buyer should undertake the fees of travel, board and lodging\r\rCharacteristics.\rCan complete the forming of different kinds of complex patterns.\rFlying-arm design guarantee convenient material loading.\rCool cutting, do not cause transformation and heat effect.\rNo pollution, do not cause poisonous gas and dust. Can cut almost all kinds of hard and fragile material, such as glass, ceramic,\rStainless steel, and soft material, such as leather, rubber and cloth. Can be the sole cutting method of some composite, fragile and complicate Material.\r\rThe incision is smooth without slag and do not require retreatment.\rCan complete drilling, cutting and forming in one process.\rDecrease the cost.\rHighly automatic.\rCan work all the day.
