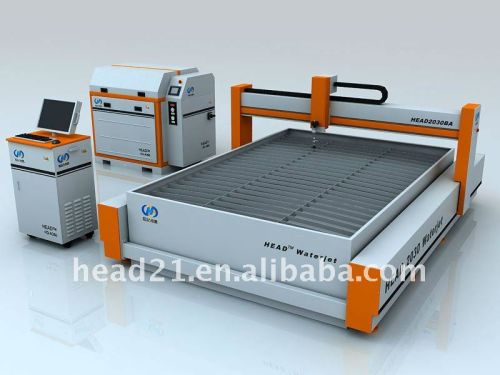

Water Jet Cutting Machine

We are offering water jet cutting machine.
Cnc ultra-high pressure waterjet cutting machine is to use intensifier pump to pressurize normal tap water to 100-300mpa in a split second. Then convert water pressure to dynamic energy through diamond orifice mount assembly. This creates a very high velocity beam of waterjet to generate high speed friction to make cutting. Waterjet cutting is suitable for cutting almost all the materials, such as glass, marble, metal,rubber and wood , and many advantages of it will be greatly found during different materials cutting
1. Cutting table: bridge style and cantilever style ,
z-axis journey is 150mm,
three-axis control, auto zero positioning,
drives and motors are from japan,
all screw and linear guide are abba brand from taiwan.
2, intensifier pump: type of pressurization is hydraulic, type of shift is electronic, maintenance free accumulator whose capability is 1.3l using american technology, intensifier is from america.
3. Cnc controller: windows xp based.
Industrial personal computer and 17inch lcd,
specialized waterjet cutting software,
omron brand plc instead of relay
specifications；
intensifier pump(model 380mpa)
1.type of pressurization is hydraulic. (the water is pressurized by using the fluid pressure intensification principle)
2. Max. Oil discharge is 90 l/min
3. Max. Water discharge is 3.7l/min
4. Max. Diameter of orifice is 0.3mm
5. Max. Operating pressure is 380mpa
6. Continuous operating pressure is 330mpa
7. Power requirement : 30 kw, 380v/50hz
8. Type of shift is electronic
9. Type of shift is electronic
10.intensifier is from america
cutting table(model 2030 b(bridge)
cutting size:2000mm*3000mm
xcutting stroke:1000mm
ycutting stroke:2000mm
zcutting stroke:150mm
cnc control system:servo system
cuttng precision:±0.1mm
power source:380v,50hz.
