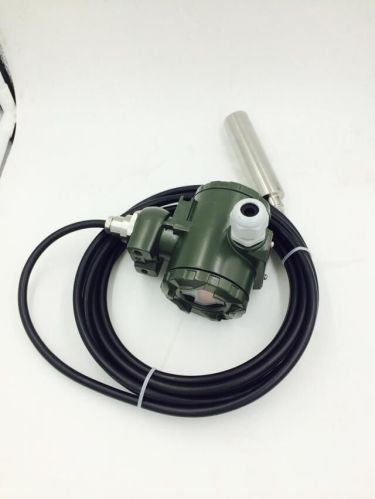

We offer Water Level Meter.
Description :
YD322-II level transmitter isolation membrane sealed by the oil-filled liquid level sensors and instrumentation dedicated circuit, with high accuracy, good stability, long life, easy installation. The unique structure of the seal in the form of technology, good anti-leakage performance, reliable long-term immersion in liquid.
Specification :
Measuring range: 0 ~ 0.2m ~ 100m
Accuracy: ± 0.5% FS
Output signal: 4 ~ 20 mADC or 1 ~ 5VDC
Overload: 2 to 3 times the range
Power supply: 18 ~ 36VDA (calibration 24VDC)
Medium temperature: -50 ~ 300 °C
Ambient temperature: -30 °C ~ 80 °C
Humidity: ≤ 85% RH
Features:
Imported diffused silicon sensor, measurement accuracy, good stability
Anti-jamming design, suitable for harsh environments, high temperature
External zero adjustment and meet directly
