Water Level Sensor (Monitoring System)

To cater the variegated demands of our precious clients, our organization known as a leading exporter, manufacturer & supplier of water level sensor (monitoring system) in saint petersburg, sankt-peterburg, russia. Water level monitoring system is designed to provide periodic testing (monitoring) of the liquid level in the boreholeswells with the ability to control the liquid temperature using the data received from submersible hydrostatic level gauge. In addition it has the function to transmit the temperature data as well as the data about the voltage of the data transmission module to the database server via the gprs channel with the pre-set sampling time from 10 minutes to 24 hours.
The system consists of:

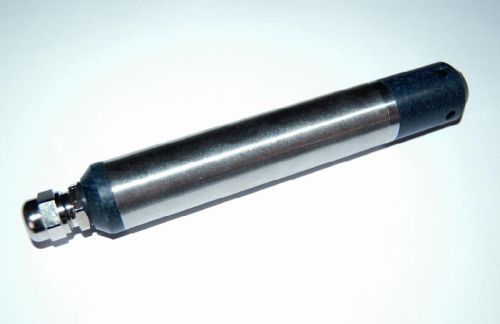

- hydrostatic level gauge
- data transmission module
- software for the water level monitoring system
- cable
- removable accumulators
- accumulator charder
data sheet:
mtbf of the system is at least 30,000 hours.
Service life of the system after installation is at least 7 years.
Max. Measured liquid levels, m - 3.5 - 10
max. Length of the cable connected with the water level gauge , m - 30
permissible overload pres-sure , %, 150
voltage supply, v, 18, dc
power supply, mа, 17
the system is resistant to the effects of sinusoidal vibration in the frequency range from 100 to 1000 hz at acceleration amplitude up to 30 m s2 (3g)
