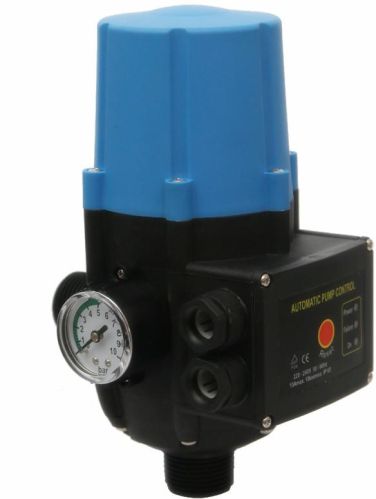

Water Pressure Control Valve

Working principle: first, collect changing single from the pipeline system of water pressure and flow rate, to control the pump work inremote, intelligent and real-time. Secend, open the faucet or valve, automatically start the pump; close the faucet or valve,the pump automatically stops. Last, when the woter pump water shortage or stuck by foreign body, the pump automatically stops by the device, prevent idling and damage the woter pump.
.technical parameters
rated voltage: 220v-240v、 110v-120v、 110v-240v
frequency: 5060hz
max.current: 10a
max.power: 1.1kw、 1.5kw
starting pressure setting:1.2bar、 1.5bar、2.2bar
max.working pressure: 10bar
connection thread: r1"
protection rating: ip65
max.working temperature: 60℃.
