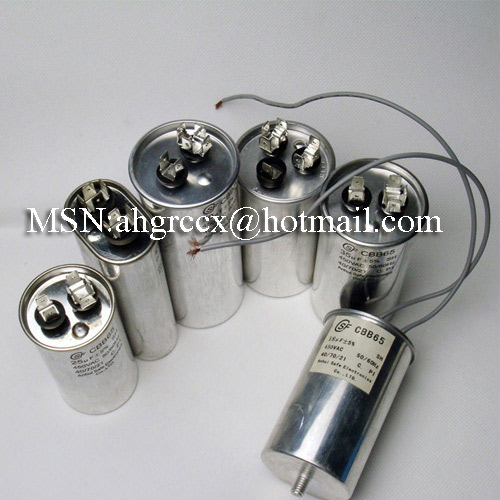

Water Pump Capacitor Cbb65

water pump capacitor CBB65 ac capacitor
1. Widely used for AC single phase motors for running
2. Highly quality specifications
1) Climate type: 40/85/21
2) Capacitance tolerance: +/-5%
3) Testing voltage: a) Between leading-out: 1.75UR,10S no breakdown
b) Between leading-out end and shell: 2200 VAC, 10S no breakdown
4) Insulation resistance: a) Between leading-out ends: ≥3000 MΩ
b) Between leading-out end and shell: ≥1000 MΩ
5) Loss tangent: tgδ ≤0.002( 50/60HZ)
6) Working Class: C, D
7) Explosion Class: P0, P1
Technical features
climate types 40/70/21
Capacity volume variance ±5%
Testing voltage between leading-out 1.75ur,10s no breakdown
Between leading-out end and shell: 2200vac,10s no breakdown
Insulation resistance between leading-out ends: ≥3000mω.uf
Between leading-out end and shell: ≥1000mω.uf
Loss tangent tgδ≤0.002(50Hz-100Hz)
Specifications can be supplied according to the customers'special need.
safety class P0,P2
Rated voltage(VAC) Nominal capacity(μF) Size(mm)
Long Wide High
200,250,370,
400,440,450 1,1.2,1.5,2,2.5,3,3.5,4,4.5,5,6,6.5,7,8,10,12,14,… 31,37,38,47,48,58 14,17,18,21,22,26,34 24,27,28,29,31, 34,38,40,44,52
Technical Specifications
•Implementation of standards,GB/T3667-2005
•Technical features: climate types,40/70/21or40/85/21
Capacity deviations,±5%
•Insulation resistance,≥3000S(MΩ•μF)
•Loss tangent,tgδ≤0.002(50Hz~100Hz)
Use requirements
•altitude,≤2000m
•residual voltage inputs,≤rated voltage10%
maximum allowable voltage,≤110% rated voltage
•Maximum allowable current,≤130%Times rated current
