Water Reservoir and Surge Tower Apparatus Model FM 42

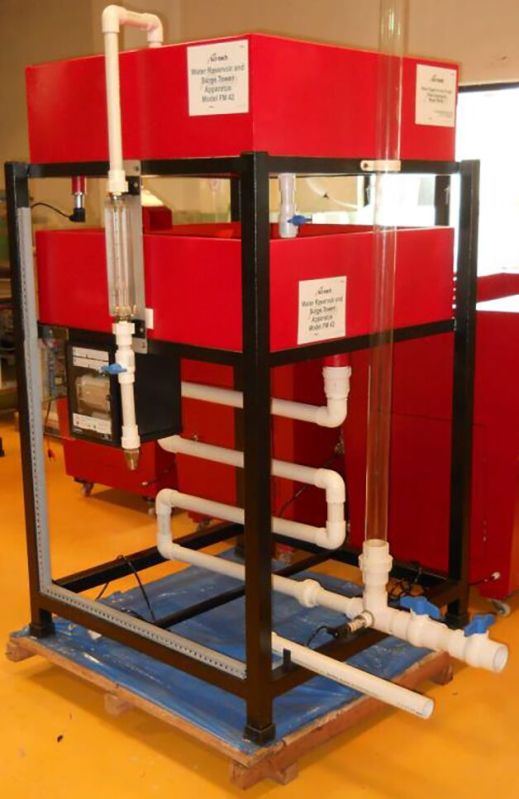

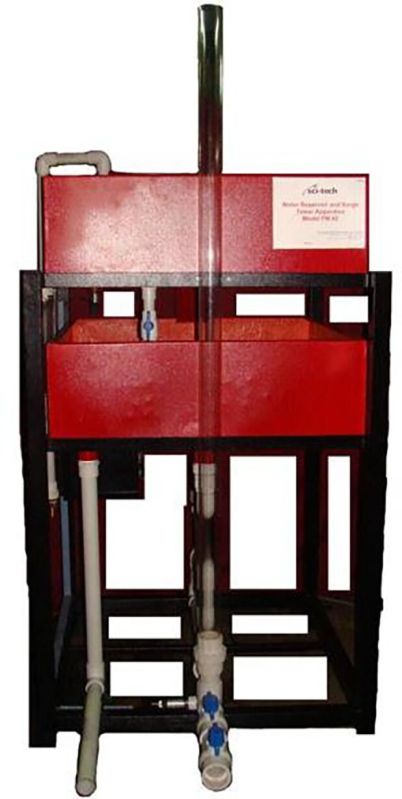

Sci-tech Water Reservoir and Surge Tower Apparatus Model FM 42 consists of two identical reservoirs connected in series. The lower reservoir supplies a pipe which terminates in a surge tower with a flow control valve and a shut-off valve. Water flows into the upper reservoir through a 50 l/min flowmeter and, when the level has reached the necessary height, flows over a weir into the lower reservoir. Water levels in the reservoirs are measured by pressure transducers connected to a pen recorder allowing the weir and flowmeter to be calibrated.

Sci-tech Water Reservoir and Surge Tower Apparatus Model FM 42 is useful to demonstrate the use of reservoirs for water storage and flood control and to demonstrate the use of a surge tower as a means of minimizing pressure transients in a penstock.

Sci-tech Water Reservoir and Surge Tower Apparatus Model FM 42 enables to achieve an understanding of: a) Unsteady flow theory. b) The continuity principle used in hydrology for flood routing. & c) The equation of motion applied to mass oscillations occurring in pump and hydro-power turbine installations.

Experiments

1. Mass continuity in unsteady systems.

2. Flood routing and reservoir inflow and outflow hydrographs.

3. Surge in a pipe and mass oscillation in a surge tower.

Instrumentation

a)    Pressure transducers for water level in reservoirs

b)    Pressure transducer for water level in surge tower

c)     Variable gap flow meter

Technical Specification

Reservoirs: 0.9 m x 0.9 m x 0.3 m each

Surge Tower: 63 mm diameter, 1.8 Mtrs Height.
