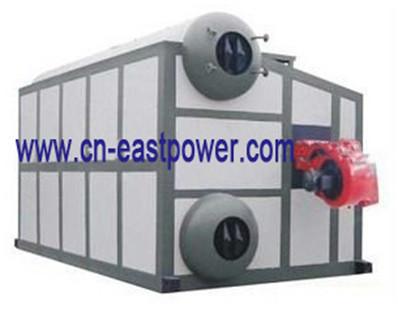

Water Tube Oil Gas Steam Boiler, Brand Name : epcb

We are offering water tube oil gas steam boiler.
Quick details condition: new type: natural circulation
fuel: oil gas fired place of origin: shandong china (mainland) brand name: epcb
model number: szs 4-75 t- oil gas boiler output: steam hot water certification: gb ( glass a), asme, ce, gost, as
after-sales service provided: engineers available to service machinery overseas boiler fuel: oil gas fired boiler boiler medium: hot water and steam boiler
boiler type: szs horizontal oil gas fired water tube boiler boiler burning: furnance burning
packaging & deliverypackaging detail: water tube oil gas boiler standard exported package
delivery detail: 30 days
specificationsszs water tube oil gas boiler
1. Dual fuel oil gas fired boiler
2. High efficiency, mature design
3. Quick delivery
szs series oilgas fired water tube boiler
1> fully automatic operation, safe and reliable, with a variety of boiler control and protection devices, vapor pressure , water pressure and burning all with the automatic control systems. Hot water boiler is also equipped with process control and temperature and time control.
2> easy to operate and maintain, labour-saving.
3> equipped with imported brand-name burner, fuel fully combustion and energy conservation, environmental protection.
4> closed combustion-wide boiler room, pullution-free, good-looking and clean.
5> compact structure, easy installation.
company introduction
spirit: supply reliable & high efficient heating system.
1, more than 600 sets of boilers (5000 th) can be produced by us per year. Class a boiler manufacturer. Class a1, a2 pressure vessel manufacturer.
2, each boiler system parts is from first class brand all over the world or china.
3, strict quality control system. From the material, welding, to finished boiler shipment. From project establishment, drawing design, to final audit.
4, we are the stable and long term supplier of many top 500 groups all over the world. Such as petrochina, sinopec, nestle, mercedes-benz, coca cola, etc,.
Itemmodel szs2-1.251.62.5-y(q) szs4-1.251.62.5-y(q) szs6-1.251.62.5-y(q) szs10-1.251.62.5-y(q) szs20-1.251.62.5-y(q) szs35-1.251.62.5-y(q)
rated capacity kgh 2000 4000 6000 10000 20000 35000
rated steam pressure mpa 1.251.62.53.03.82
rated steam temperature °c 194203225400
heating area m² 68.8 125.3 165.1 210 435.2 906
heating area of economizer m² 18.48 37 49.8 144 236 413
fuel light oilheavy oilnatural gascoke-oven gas
design efficiency % 89 90.35 89.67 90.24 89.17 90.3
notes:this form only for your reference,if any changed,please refer to ex-factory technical documents.
