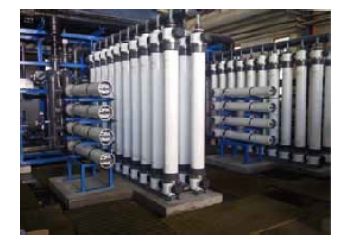

Water Ultrafiltration System

Ultrafiltration (UF) involves pressure-driven separation of materials from a feed solution. The technology achieves separation through sieving and is used to remove particulate and microbial contaminants, but does not remove ions or molecules of low molecular weight. The process typically operates with a feed pressure of 0.28 to 6.9 bar. UF plants are automated and have low operational labor requirements. UF systems are used to treat challenging water such as high turbidity surface waters, wastewater, and water with high concentration of heavy metals. UF systems are skid mounted complete with Pre Treatment and accessories such as instruments, backwashing / cleaning systems
Ultrafiltration :

• Skid made from structural steel epoxy coated
• Self Cleaning Filter
• Feed pump
• Hollow Fibre Membranes in PVDF, PES construction
• PVC pressure vessels
• Piping in pvc schedule 80
• Water quality monitoring Instruments
• Electric panel with PLC
• Chemically enhanced Backwash system
• Air blower

Optional Features :

• Pre Treatment

  • Dissolved Air floatation System
  • Clarifiers
  • Coagulant dosing
• Ultrafiltration

  • Containerised systems
  • Stainless Steel skid
  • Feed pump with Variable Frequency Drive
  • Remote monitoring of systems

Applications :

• Pre Treatment for Brackish / Seawater Reverse osmosis
• Treatment of Treated Sewage Water
• Reclamation of wastewater

Note :

• Please consult us for higher Turbidity / Capacity levels.
