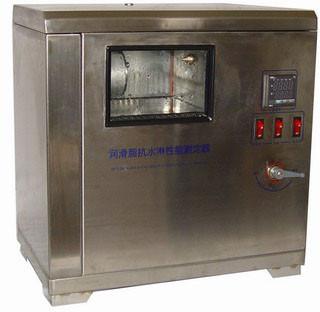

Water Washout Resistance Tester

We are offering grease resistance to water washout resistance tester applicable standards: sht0109, astmd1264 ip215 scope: determination of grease resistance shuilin was
in the grease samples fitted goal bearings, and then the ball bearing mount having a predetermined clearance requirements of the shell bearing, and rotation speed of 600rmin ± 30rmin.the water washout capabilities water controlled at 38 °c or 79 °c 5ml s ± 0.5ml s the speed of spray in the shell bearing, within 60min is washed away the amount of grease to measure the grease .
Features
1, grease resistance to water washout resistance tester is mainly composed by the temperature control system, water spray circulatory system, the transmission mechanism, white molten steel bath and shell
2, grease resistance to water washout resistance tester using pid temperature control system thermostatic bath temperature control, temperature control range from room temperature to 100 ° c, a temperature control accuracy of ± 2 °c
3, grease resistance to water washout resistance meter visual display set temperature and the actual temperature, easy temperature setting and the temperature difference correction.
Grease water washout resistance meter water spray circulatory system imported miniature magnetic circulation pump, low noise, long hours of continuous work.
5, grease resistance to water washout analyzer transmission mechanism from the motor through a belt-driven set of the bearing assembly.
6, grease resistance to water washout resistance tester design aesthetic appearance, generous, reasonable structure design, easy to operate, the measurement accuracy of the results.
Specifications
1, digital temperature control, temperature control range: bath temperature to 100 °c temperature accuracy: ± 1°c
2, precision flow control system, the water injection flow rate: 5 ± 0.5mlsec
bearing speed: 600 ± 30rmin bearing specifications: 204
4, the input power:
