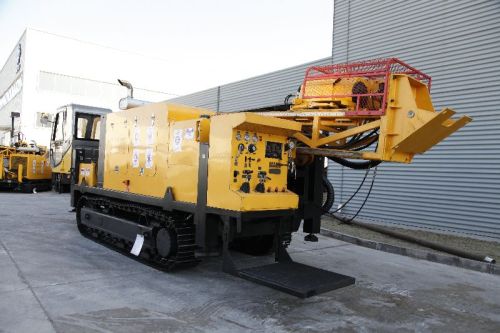

Water Well Deep Hole Core Drilling Rig

P-3000 drilling rig is specially designed for diamond core drilling and water well drilling. Robust structure plus strong power supply ensures high penetration rate and out standing reliability. Its full hydraulic concept includes virtually all operational functions that prevail on the latest models around the world.

The following high lights represent the rig’s major features :

• Combination of International advanced rig design and drilling background in China for practical utilities.
• 4 speeds gear box of 0-1,300rpm provides free combination of torque and spindle speed for diamond core drilling.
• Big chuck diameter of 117mm applies BS to PS size rod and casings.
• 4 independent hydraulic jacks guarantee secure standing of the rig.
• Regardless of traditional drilling pressure control, the theory of balance guarantees precise drilling pressure.
• Sliding aside of the drill head lowers the workers’ labour intensity.
• The automatic up&down system of the mast reduces accessorial work time and makes a better rig structure.
• The rod collection support with capacity of 200x9m(NS rod) in the middle part of the mast makes drilling work more efficient.
• Independent hydraulic cooling system.
• The rig can be mounted on steel track or on truck.
