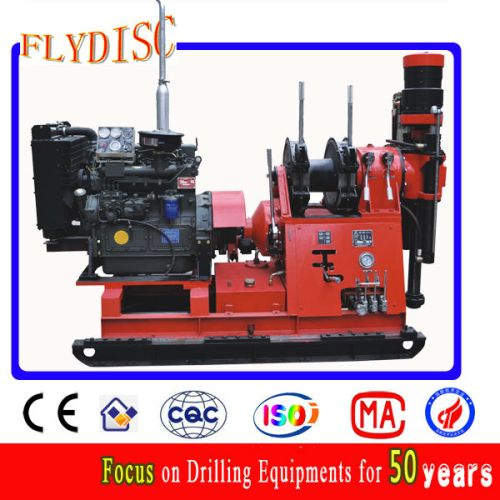

Water Well Drilling Rig

We are offering hgy-300 drilling rig.
It is widely used in the construction of the projects e.g. Prospecting, railway, road, port, bridge, water conservancy and hydropower, tunnel, well, industrial and civil construction, geological exploration, large diameter boring pile and small diameter diamond core deep hole drilling, etc.
Brief introduction:
1.32 years professional manufacture
2. Certificate: iso9001:2008
3. Export to: africa, the middle east, south america, asia,
countries: south africa, zambia, sudan, iran, south korea, costa rica etc.
Features:
1) wide range of suitable rotary speed to meet various needs.
2) common auto parts, such as clutch, transmission case and shifting structure.
application:
1. Coal mining exploration, ore exploration;
2. Small hole diameter water well drilling;
3. Geothermal pipe-installing for heat pump;
4. Small-diameter hole foundation piling drilling
technological data of drilling rigs:
model hgy-300 drilling rig
drilling depth( m) 300
drilling rod diameter.(mm) φ50
head angle range 0~360°
movable cylinder stroke (mm) 400
spindle speed( rmin) positive rotation rate:50 87 137 189 230 399 629 868
reverse rotation rate: 39 180
spindle hole diameter( mm) φ63φ95
spindle output torque max(n.m) 2800
spindle stroke(mm) 530
lifting power max( kn) 60
driving force max(kn) 40
lifting speed( ms) 0.41 0.72 1.13 1.6
lifting capacity(single) max(kn) 30
steel wire rope diameter (mm) φ13
mode of chuck hydraulic chuck or pillar-type chuck
weight(power unit excepted)(kg) 1200
overall dimensions(mm) 2315*900*1700
diesel engine model k4100d(30kw)
electromotor model y180l-4( 22kw)
