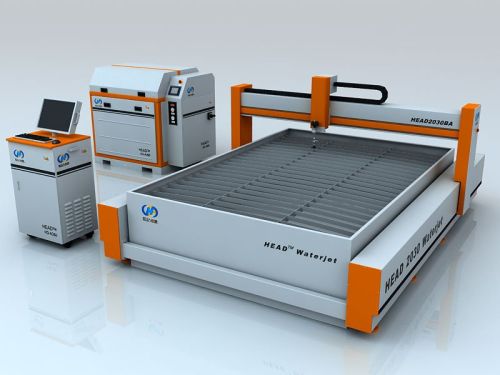

Waterjet Cutting Machine With 2000*3000mm Cutting Table

1. intensifier pump(HD-A400)
Main characters:
Whole set of intensifier from America(IWP)
One cylinder and two direction cycle piston style intensifier components
Single row water filter system
Safeguard from ultra-high pressure
Electrical shift
Continuous pressure adjustment by hand, the range of pressure is 50-380MPa
Main technical data of intensifier pump:
Max discharge of oil pump:90L/min
Max water discharge:3.7L/minl Max available orifice diameter:0.3mm
pressure:300MPa-420Mpa
Continuous working pressure:320~340MPa
Main motor power:37KW(50Hp)
Power supply:380V/50HZ
Touch screen to show the machine working condition and error information.
2.CNC System
CNC control
19 Inch LCD is convenient for operator to observe and reduce visual fatigue
Support DXF file and any auto programming software to produce NC code. The DXF file output from AUTOCAD does not need other transformation software. It is ok to use it directly from CNC system software and make the concatenation of image in DXF file automatically.
3,Cutting table(HD-1525F)
Structural style: Bridge style
Valid processing range:2000mm*3000mm
Z-axis journey:150mm
Control accuracy: about 0.01mm
Cutting accuracy: about0.1-0.2mm
4. HP on/off valve ,cutting head and HP tube
Model HD1020F HD1525F HD1530F HD1540F
Processing scope 1.0m*2.0m 1.5m*2.5m 1.5m*3.0m 1.5m*4.0m
Form of machine Cantilever
Runing speed 0-10m/min
Control system AC servo system
Control accuracy about 0.01mm
Cutting accuracy about 0.1mm
working pressure 300Mpa-420Mpa
Max.flow rate of UHP water 3.7L/min
Motor power of oil pump 18.5kw/30kw
Power supply 380V 50HZ
