Product Details
Company Details

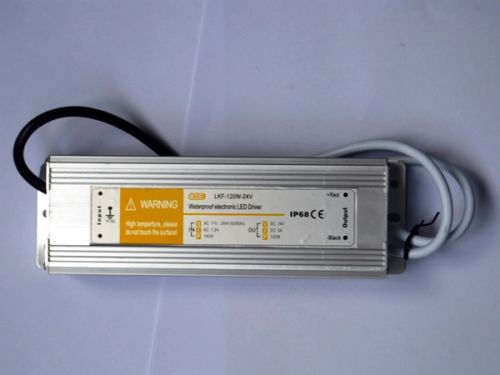

We are offering 120w waterproof led power supply
specification:
1. Dc output voltage: 12v-24v
2. Rate output current: 10a~5a
3. Rate output power: 120w
4. Ripple &noise(max)mvp-p≤ 1%uou
5. Load regulation: ± 1%
6. Setup rise hold up time: 230v/500ms 20ms 30ms 115v/500ms 20ms 10ms
7. Input voltage range: 170-250vac
8. Frequency range: 47-63hz
9. Efficiency: 95%
10. Ac current(max): 1.5a/220v 2.8a/115v
11. Ac inrush current: 40a/230v
12. Short circuit protection: /over load 130% ~150% over voltage 115% ~135%
13. Working temp: -20 ~50 degree
14. Working humidity: 20% ~90%rh
15. Storage temp humidity: 20% ~95%rh
16. Safety standards: ce fcc gb4943
17. Withstand voltage ip/op: 5ma 2kvac
18. /isolation resistance ip/op: 100m ohms
19. Protection rank: ip67
20. Dimension: 200mm*91mm*43mm
21. Weight: 1060g
