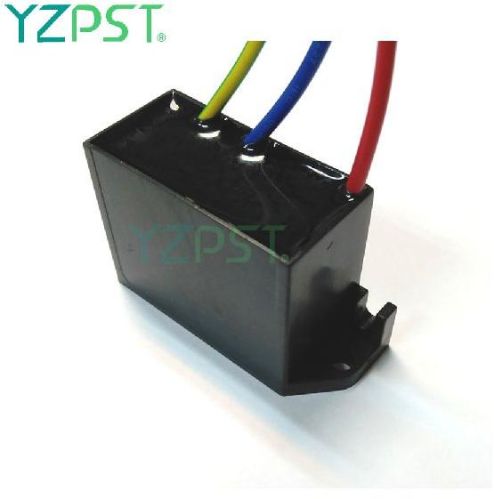

Waterproof Parallel LED Lightning Arrester

Led lightning arrester yzpst-led5b brief introduction to product this product is used for lightning and surge pulse protection of led lamps.due to the led lamps  for the core of the device is a semiconductor diode, it can be extremely low or even overvoltage, 5-6v is enough to destroy the lamp beads,so it is necessary to select a special lightning protector to protect the power supply line of the led from overvoltage and  avoid the situation of large-area of led lamps and black lights in the same area caused by lightning strikes,the developed product of our company has the following characteristics : 1. This product is in parallel,which can timely diagnose working state of the lightning protection and change in time to protect the lamps. 2. It has large absorption capacity for surge, low output residual voltage, small volume, optional waterproof structure, and easy installation. Technical parameters list model yzpst-led10b yzpst-led20b yzpst-led5b nominal working voltage un 110/220/277v 110/220/277v 220v maximum continuous working voltage uc   150/275/320v 150/275/320v 275v withstand impact voltage uoc 10kv 20kv 6kv nominal discharge current in (8/20μs)   5ka 10ka 2.5ka maximum discharging current  imax(8/20μs)   10ka 20ka 5ka voltage protection level up   1kv 1.5kv 0.7kv drain currrent ir   ﹤5μa   external dimension   62*22*35mm response time ta ≤25ns operating temperature range tup -40℃to +70℃ water-proof
