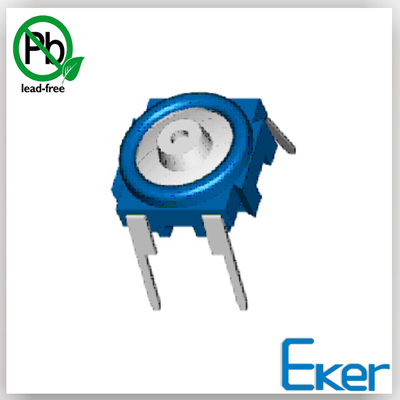

Contact SupplierTe 1 Series Waterproof Tact Switch:
waterproof Tact Switch Soldering
hand Soldering:soldering Iron 30w At Under 350°c/3sec.max.
reflow Soldering:260°c±5°cwithin 30 Sec.max
wave Soldering:270°c /5 Sec.max
waterproof Tact Switch Mechanical
operation Force: 250g Max.
operation Temp: -40°c to +85°c
-40°c to +125°c(reflow Slodering)
storage Temp: -40 °c to +85°c
mechanical Life: 10,000steps
waterproof Tact Switch Electrical
electrical Life: 1,000,000 Steps
non-switching Rating: 100ma, 50vdc.
switching Rating: 20ma, 5vdc.
contact Resistance: 100mω Max
insulation Resistance: 1000mω Min.at 100vdc
dielectric Strength: 250vac/1minute
many Different Kinds of Waterproof Tact Switch, Pls Contact Us for More Detail Information.
if You Ever Use Mec Tact Switch,You Can Find the Replacement Version Here.
