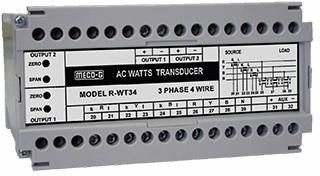

WATT TRANSDUCER

Storage Temp-20°C ~ 70°C
Dielectric Withstand Voltage between Input / Output / Power / Case2 KV AC for 1 minute.
Insulation Resistance (@ 500V DC)>100MΩ
Breakdown Impulse Voltage4.5KV , 1 x 40µs (without dewing.)
Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

Product Details

Insulation Resistance (@ 500V DC)>100MΩ
Overload Continuous2 x Rated Current, 1.2 x Rated Voltage
Output Ripple0.2% RMS
Accuracy± 0.5% of Rated output, ± 0.2 % (Optional)
Dielectric Withstand Voltage between Input / Output / Power / Case2 KV AC for 1 minute.
Operating Temp.0° ~ 50° C (RH < 90 %) Non - Condensing
Storage Temp-20°C ~ 70°C
Breakdown Impulse Voltage4.5KV , 1 x 40µs (without dewing.)
Tempreature Coefficient0.03% / °C.

"MECO-G" WATT Transducers convert a sinusoidal AC signal into a standard DC signal which is directly proportional to the measured input signal, These outputs are accurate, reliable, consistent and stable which are suitable for Telemetering, Dataloggers, PLC's, SCADA systems and control applications.
