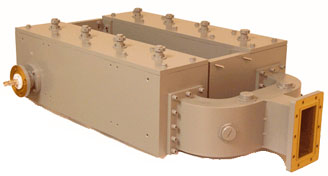

Waveguide Fixed Diplexer

CMC Waveguide Fixed Diplexers consist of two Fixed Tuned Bandpass Filters sharing a common port. Signals applied to the common port are separated in accordance with the passband frequency of each filter network. Signals applied to either channel are isolated from the adjacent channel, but are combined at the common port. Waveguide Fixed Diplexers are offered in circulator designs, for enhanced isolation, and non-circulator designs for non-directional applications and to minimize loss. Waveguide resonator designs offer high isolation, high power handling, and extremely low loss.
