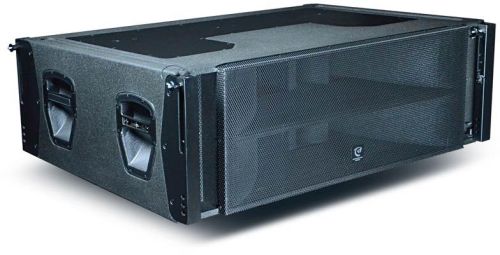

Way Line Array Speaker, Brand Name : Dimuk

We are offering way line array speaker.
Description
the dline-1210 speaker uses advanced divergence shading where all loud-speakers are powered at equal level. Can provide uniform sound coverage from directly beneath itself out to hundreds of feet without complex signal pro-cessing. Vertical coverage for the array is set by varying the splay of the rear of the enclosures, leaving the fronts tight-packed. This configuration produces a continuous, coherent wavefront from the array, projecting extended range, high-resolution sound over its full coverage area.
quality construction features include, baltic birch plywood enclosures, heavy-duty steel grilles, neutrik nl8 connectors, heavy duty bar handles, rear hand-holds, and accessory cast-er pallets.
applications
this high output touring system is scalable from theaters under 1,000 seats to stadiums. The dline-1 is used as the short to long throw element of a dline series line array providing coverage in the range of 70 to 400 feet.
the recommended minimum dline-1210 array size is four enclosures. For full performance eight enclo-sures are recommended. To extend the low frequency response, the ts-218b make an ideal complement to the dline series.
specifications
compoents : lf 2x 12-in mf 2x 10-in cone, radial phase
output watts : lf: 2000 @ 8 ohm (2x) mf: 800 @ 8 ohm hf: 300 @ 8ohm
sensitivity: lf: 96 mf: 108 hf: 113
max spl: lf: 129 mf: 136 hf: 138 ±3 db
frequency range: 80hz-16khz
cover range angle : h 80 vertical coverage determined by array configuration.
Impedance : lf 8 2x8 ohm mf 8 ohm(2@16 ohm each ) hf 8 ohm (2@16 ohm each )
connecters: 2x neutrik nl8
dimensions: 368*1143*787mm
weight : 110kg.
