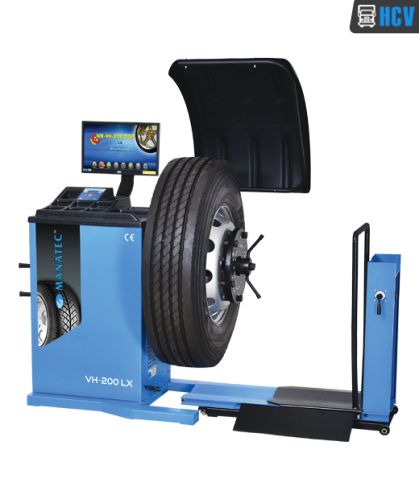

    WB-VH-200 DSP LX Wheel Balancer, Power : 900W

    WB-VH-200 DSP LX Wheel Balancer, Power : 900W

    Get Latest Price
    • Brand NameManatec
    • Power Supply400V AC ± 5% 3 Phase, 50Hz
    • Power900W
    • Maximum Wheel Weight200kg
    • Supply TypeExporter, Supplier
    • Preferred Buyer Location All over the world
    View More Details
    Send Enquiry

    Company Information

    Swami Techverified-icon
    location Belgaum, Belagavi, Karnataka
    View Number
    • calendar Member Since 4 Years
    • building Nature of Business Exporter
    • gst icon GST No. 29FPSPD0442B1Z2

    Ask for more detail from the seller

    Contact Supplier
    Report incorrect details
    View Company Details

    • Product Details

    • Company Details

    no_img_icon

    • Brand NameManatec
    • Power Supply400V AC ± 5% 3 Phase, 50Hz
    • Power900W
    • Position Accuracy± 1 Deg
    • Balancing Speed200RPM for Cars / 100RPM for Trucks
    • Accuracy1gm for Cars / 10gms for Trucks
    • Air Supply Requirement6 - 8 Bar
    • Maximum Wheel Weight200kg
    • Maximum Wheel Diameter50 Inch (1270mm)
    • Rim Diameter10 Inch to 26 Inch (254mm to 660mm)
    • Rim Width1.5 Inch to 20 Inch(38mm to 508mm)
    • Motor power0.55 kw
    • Maximum Wheel Width21 Inch (533mm)

    Description:

    • Videographic Display (10” to 26” Rim diameter).
    • Automatic start with Wheel guard closure.
    • Electrical & Mechanical brake system.
    • Static (Single plane) and Dynamic (Two plane) balancing.
    • Two modes of measurements – Normal and Fine.
    • Five modes of Alloy wheel functions (only for Cars).
    • Automatic distance input mechanism.
    • Manual measurement of Rim Diameter & Rim width.
    • Auto unbalance recalculation without Wheel Run on input parameters change.
    • Adjustable unbalance threshold (Weight cutoff) (9gm to 15gm for Cars).
    • Dimension setting in “inch” or “mm” & Unit conversion in “grams” / “ounces”.
    • Self diagnostic, On-line error display facility & Self calibration.
    • Pneumatic wheel lifter allows to lift the heavy truck wheel upto 200 kgs.
    • High resolution (DVI input) & LED Monitor
    • Software update through USB
