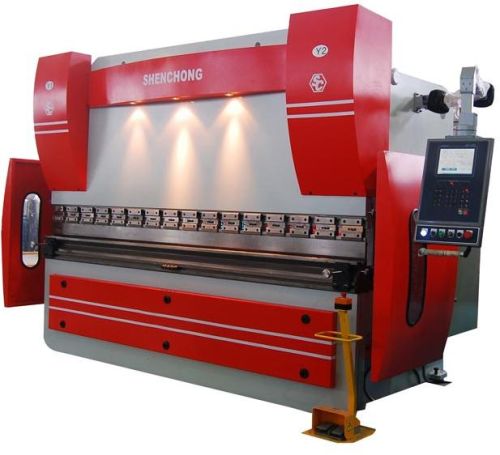

Wc67 Series Hydraulic Press Brake

We are offering wc67 series hydraulic press brake.
Technical specifications
range : 40 mt to 400 mt
length : 2000 mm to 6000 mm
silent features
cnc controller from delem
close loop ram axis y1, y2 & back gauge axis x
bend angle & depth mode program
highly precise magnetic type press brake scale
hardened & ground ball screw with linear motion bearings
close loop proportional hydraulics for beam synchronization
zero leak sealing of hydraulic cylinders
ac servo drive on back gauge
hardened & ground die & punch
manual anti deflection unit in punch
quick release die clamps
standard accessories
main drive motors
front cylinders with pu seals
selection of auto, inch & single cycle auto thru screen
hmi with 5.7” lcd monochrome screen & numeric keypad
da‐56 controller from delem
netherlands for x, y1 & y2 axis
proportional hydraulics from hoer bigger ‐ germany for y1‐y2 axis control
non‐contact type linear glass scale of 5 micron accuracy for y‐axis position measurement
ac servo drives for x‐axis control
back gauge assembly included ball screw, drive unit, rotary encoder & lm guides
one suitable five way hardened & grounded die & punch
manual anti‐deflection unit in punch
pair of sheet support
pair of foot switch
optional accessories
multi‐ axes back gauge
higher versions of controllers. Special tooling
anti‐deflection unit (motorized & automatic)
sliding sheet supports with swing‐away stoppers for front gauging
bed & ram horn extensions
photo‐electric finger safety guards
hydraulic tool clamping
first fill of hydraulic oil
models nomal pressure
(kn) length of table (mm) distance between housing (mm) throat depth (mm) stroke (mm) open hight (mm) main motor (kw) weight (t) overall dimensions
(l ã� w ã� h) (mm)
we67k-63/2500 630 2500 2000 320 150 380 5.5 4.5 2825ã�1650ã�2350
we67k-63/3200 630 3200 2700 320 150 380 5.5 5.5 3800ã�1650ã�2450
we67k-100/3200 1000 3200 2700 400 180 440 7.5 7.5 3810ã�1750ã�2530
we67k 125/3200 1250 3200 2700 400 180 440 7.5 8.2 3820ã�1800ã�2530
we67k-125/4000 1250 4000 3200 400 180 440 7.5 9 4600ã�1800ã�2580
we67k 160/3200 1600 3200 2700 400 180 450 11 10.8 3830ã�1870ã�2560
we67k 160/4000 1600 4000 3200 400 180 450 11 11.5 4610ã�1920ã�2700
we67k-200/3200 2000 3200 2700 400 180 450 11 12.5 3900ã�1920ã�2560
we67k-200/4000 2000 4000 3200 400 180 450 11 13.8 4620ã�1950ã�2700
we67k-200/6000 2000 6000 4800 400 180 480 11 18.5 6080ã�1950ã�2900
we67k-250/3200 2500 3200 2700 400 200 480 15 15 3900ã�2150ã�2950
we67k-250/4000 2500 4000 3200 400 200 480 15 16.5 4080ã�2150ã�3000
we67k-250/5000 2500 5000 4000 400 250 560 15 17.5 5080ã�2200ã�3250
we67k-250/6000 2500 6000 4800 400 250 560 15 20 6080ã�2200ã�3400
we67k-300/4000 3000 4000 3200 400 250 560 22 19 4080ã�2200ã�3200
we67k-300/5000 3000 5000 4000 400 250 560 22 21 5100ã�2200ã�3300
we67k-300/6000 3000 6000 4800 400 250 560 22 24 6200ã�2200ã�3500
we67k-400/4000 4000 4000 3200 400 320 630 30 25 4100ã�2400ã�3500
we67k-400/5000 4000 5000 4000 500 320 630 30 28 5200ã�2600ã�3700
we67k-400/6000 4000 6000 4800 500 320 630 30 38 6200ã�2650ã�4800
we67k-500/4000 5000 4000 3200 600 320 630 37 40 4200ã�2800ã�4600
we67k-500/5000 5000 5000 4000 600 320 630 37 45 5200ã�2800ã�4900
we67k-500/6000 5000 6000 4800 600 320 630 37 50 6200ã�2800ã�5200
we67k-600/5000 6000 5000 4000 600 320 630 37 58 5200ã�3000ã�5300
we67k-600/6000 6000 6000 4800 600 320 630 37 63 6200ã�3000ã�5600
we67k-800/5000 8000 5000 4000 700 350 800 55 75 5200ã�3500ã�5600
we67k-800/6000 8000 6000 4800 700 350 800 55 85 6200ã�3500ã�5800
we67k-1000/6000 10000 5000 4800 700 400 800 55 105 6200ã�4100ã�6900.
