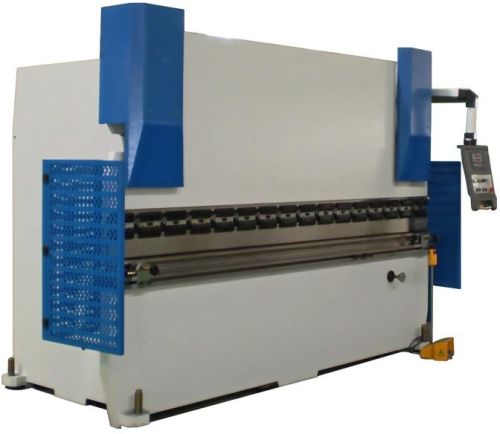

WC67Y-160Ton Hydraulic Press Brake

1.The whole machine is in sheet plate welded structure,with internal stress eliminated by vibration aging technology.high strength and good rigidity of machine.
2.Double hydraulic oil cylinder is applied for upper transmission,provided with mechanical limit stopper and synchronous torsion bar,typical of stable and reliable operation,as well as high precision.
3.Electrical control and manual fine-tuning mode are adopted for distance of rear stopper and stroke of gliding block,and fitted with digital display device.easy and quick in use.
4.Upper die is fitted with deflection compenstaion device.
Item WC67Y-160Ton×3200mm WC67Y-160Ton×4000mm
Nominal force(KN) 1600 1600
Worktable length(mm) 3200 4000
Distance between holes(mm) 2600 3000
Depth of throat(mm) 320 320
Slider travel(mm) 200 200
Max open height(mm) 460 460
Main power(Kw) 11 11
Weight(KGs) 10,500 11,500
Overall dimension(L×W×H mm) 3200×1700×2700 4000×1700×2800
Item WC67Y-160Ton×5000mm WC67Y-160Ton×6000mm
Nominal force(KN) 1600 1600
Worktable length(mm) 5000 6000
Distance between holes(mm) 4000 5000
Depth of throat(mm) 320 320
Slider travel(mm) 200 200
Max open height(mm) 460 460
Main power(Kw) 11 11
Weight(KGs) 14,000 19,500
Overall dimension(L×W×H mm) 5000×1900×3100 6300×1900×3200
