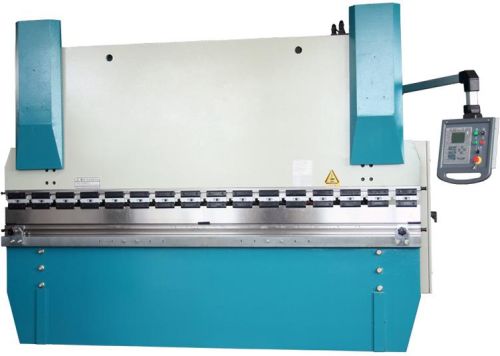

1.The whole machine is in sheet plate welded structure,with internal stress eliminated by vibration aging technology.high strength and good rigidity of machine.
2.Double hydraulic oil cylinder is applied for upper transmission,provided with mechanical limit stopper and synchronous torsion bar,typical of stable and reliable operation,as well as high precision.
3.Electrical control and manual fine-tuning mode are adopted for distance of rear stopper and stroke of gliding block,and fitted with digital display device.easy and quick in use.
4.Upper die is fitted with deflection compenstaion device.
Item WC67Y-40Ton×2200mm WC67Y-40Ton×2500mm
Nominal force(KN) 400 400
Worktable length(mm) 2200 2500
Distance between holes(mm) 1850 1850
Depth of throat(mm) 230 230
Slider travel(mm) 100 100
Max open height(mm) 320 320
Main power(Kw) 5.5 5.5
Weight(KGs) 2750 3000
Overall dimension(L×W×H mm) 2200×1200×1910 2500×1200×1910
