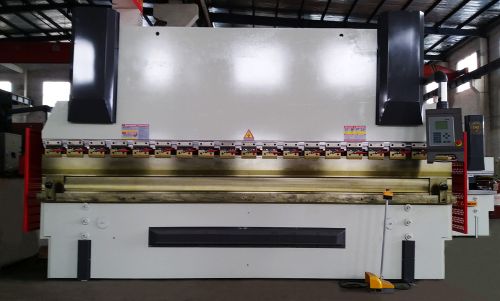

WC67Y Series Hydraulic Bending Machine From China Manufacture

We are offering CNC Hydraulic Press Brake Machine
1.Color:according to consumers’ request
2.Working voltage:according to consumers’ request
3.Bending die toolings:according to consumers’ request
4. control system:optional Delem system,china system, etc
5.Bending thickness range:0.1mm-20mm (as optional)
6.Bending width range:1 m-16m (as optional)
7.Bending material available:Mild steel,stainless steel,aluminum steel,sheet metal etc
8.Certificate :CE and ISO
9. Over-load overflow protection is outfitted to hydraulic system,no leakage,and the oil level can be read
10. Press pressure is adjustable
11. laser protection as optional
The Machine Structure
• Steel plate welded structure, hydraulic transmission, accumulator return, holistic processed, vibrating to eliminate stress, high strength and good rigidity.
• Slanting wedges can be chosen to install on the top dies which can be adjusted by hands or automatically.
• The stroke of slider and back gauge is adjusted automatically and showed on CNC Mechanical torque or NC control panel.
• optional: Hydraulic compensation system is installed under the worktable;servo motors
Hydraulic system
• Hydraulic control system from janpanese Nok
• Overload & overflow protection to ensure there is no leakage and protect hydraulic system, and the oil level can be read directly.
Servo motorized back gauge
• CNC Back gauge system with X axis by AC servo motor driven ball screw shafts and on linear bearings with an accuracy of 0.01mm.
• Back gauge has well enough mechanical strength and rigidity with tank-type gauge structure.
• High-precision ball screw and linear guide-way. Particular finger-stop design, enlarge the range of back gauge.
