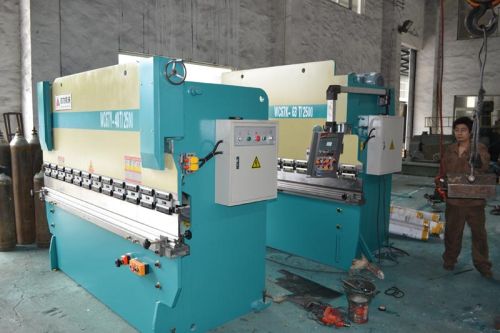

Wc67y Series Press Brake, Bending Machine

We are offering wc67y series press brake, bending machine etc.
Steel welded structure, stress elimination by vibration, high mechanical strength, and exceptional rigidity. Hydraulic top-drive, steady and reliable. Mechanical stop and steel torsion bar to maintain synchronization and high precision.
electric adjustment, manual fine adjustment, and digital display for backgauge distance and stroke of up ram.
deflection compensation unit installed on the up die or on the down die if the operating pressure is 250t or above.
this machine is designed limiting limit elements analyzing and optimization made of entirely steel structure. Using libration effort to eliminate inner stress, the rigidity of machine is guaranteed.
slider adopt torsion shaft synchronization mechanism, high-precision twisting axis centering taper bearings at both ends of torsion shaft ,and to install loads ,can make the workpiece acquire better precision of bending .
The bending angle adjustment by reducer driven by a mechanical block inside the fuel tank, trip counter display value.
Installed long-distance pressure-regulator valve on column right side.
Wallboard inside with manual pumps..
Back gauge adopt grinding plate design ,high regulation accuracy.
ton kn mm mm mm mm kw mm ton
type nominal pressure workbench length poles distance throat depth max opening height main motor dimension(l×w×h) machine weight
40t/2200 400 2200 1600 200 320 5.5 2300×1100×1900 2.5
40t/2500 400 2500 1900 200 320 5.5 2600×1100×1900 2.8
50t/2200 500 2200 1600 200 320 5.5 2300×1150×1940 2.8
50t/2500 500 2500 1900 200 320 5.5 2600×1150×1940 3.2
63t/2500 630 2500 1900 250 345 5.5 2600×1500×2200 4.1
63t/3200 630 3200 2600 250 345 5.5 3300×1500×2200 4.6
63t/4000 630 4000 3100 250 345 5.5 4200×1500×2300 5.1
80t/2500 800 2500 1900 250 350 5.5 2600×1700×2320 5.0
80t/3200 800 3200 2600 250 350 5.5 3300×1700×2320 5.5
80t/4000 800 4000 3100 250 350 5.5 4100×1700×2320 6.8
80t/5000 800 5000 4000 250 380 7.5 5100×1700×2500 9.2
100t/2500 1000 2500 1900 320 380 7.5 2600×1750×2420 5.6
100t/3200 1000 3200 2600 320 380 7.5 3380×1750×2420 6.6
100t/4000 1000 4000 3100 320 380 7.5 4000×1750×2420 7.8
100t/5000 1000 5000 4000 320 380 7.5 5000×1750×2520 9.2
100t/6000 1000 6000 4800 320 380 7.5 6000×1750×2620 12.0t
125t/2500 1250 2500 1900 320 380 7.5 2600×1750×2520 6.2
125t/3200 1250 3200 2600 320 380 7.5 3200×1750×2520 7.2
125t/4000 1250 4000 3100 320 380 7.5 4000×1750×2520 9.2
125t/5000 1250 5000 3950 320 380 7.5 5000×1750×2520 10.5
125t/6000 1250 6000 4800 320 380 11 6100×1750×2720 13.5
160t/2500 1600 2500 1900 320 450 11 2700×1850×2700 8.2
160t/3200 1600 3200 2550 320 450 11 3300×1850×2700 9.5
160t/4000 1600 4000 3040 320 450 11 4100×1850×2700 11
160t/5000 1600 5000 3800 400 450 11 5100×2000×3000 14.5
160t/6000 1600 6000 4800 400 450 11 6100×2000×3200 18
200t/2500 2000 2500 1840 350 500 11 2600×2150×2950 12
200t/3200 2000 3200 2540 350 500 11 3300×2150×2950 13.5
200t/4000 2000 4000 3100 350 500 11 4100×2150×2950 16
