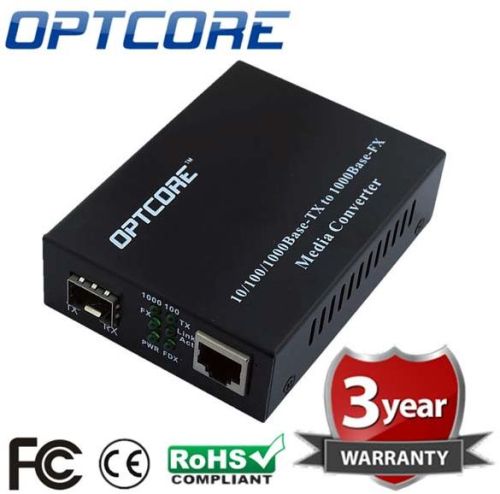

Wdm Fiber Media Converter

We are offering wdm fiber media converter.
Features
• the transmission of a channel signals can be completed by single fiber. It has doubled in quantity of fiber data transmission compared with twin fiber.
• auto negotiation function allows utp port to auto select 101001000m and full duplex or half duplex
• the utp port supports mdi mdi-x auto crossover.
• supporting the max 1536bytes packets
• external power supply
specifications
• standards: ieee802.3zab, 1000base-t and 1000base-bx
• copper port: 1 x 101001000base-t rj-45 port, auto-negotiation
• fiber optical port: 1 x 1000base fx (sc)
• fiber connector: 1 - fiber optic scstfc optional
• optical wavelength: mc-gsb11-a40x tx1310nmrx1550nm mc-gsb11-b40x tx1550nmrx1310nm
• output power: -8.0 dbm ~ -3.0 dbm
• sensitivity: -24.0 dbm
• link power budget: 16.0 dbm
• flow control: full duplex: supporting standard ieee802.3x; half duplex: back pressure
• mac addresses table: 4k
• data buffer built-in: 256kbyte ram
• time delay:
