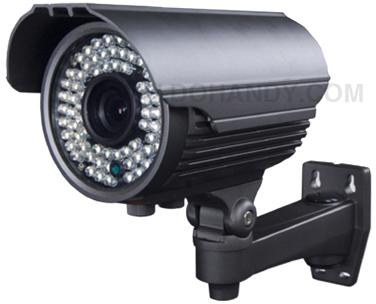

Weatherproof Ir IP Camera, Brand Name : Dohandy

We are offering weatherproof ir ip camera for cctv systems.
型号 dh-w1126hd dh-w1126h dh-w1126sd dh-w1126s
image sensor 1/3" sony icx673ak ccd 1/3" sony icx639bk ccd 1/3" sony icx633bk ccd 1/3" sony icx633bk ccd
horizontal
resolution
effio-e 700tv lines low illumination 600tv lines low illumination 540tv lines
low illumination 420tv lines
low illumination
pixels pal: 976 (h)×494(v) ntsc: 976 (h)×582 (v) pal:795 (h)× 596(v)
ntsc :811 (h)×508 (v) pal:752 (h)× 582(v)
ntsc :768 (h)×494 (v) pal:500 (h)× 582(v) ntsc :510 (h)×492 (v)
tv system pal/ntsc
ir led ￠5 x 72 pcs
ir series
distance
60 m
lens 4-9mm manual zoom lens
sync system internal
usable
illumination
0.1 lux/f2.0
ir power on cds auto control
s/n ratio >48db
gamma
correction
0.45
video out composite signal (1.0vp-p, 75ω)
scanning system pal:625 lines, 50 field/sec;ntsc:525 lines, 60 field/sec
electronic
shutter time
auto:pal 1/50-1/100,000sec;ntsc 1/60-1/100,000sec
operation
temperature
-10℃ ~ +50℃ rh95% max
storage
temperature
-20℃ ~ +60℃ rh95% max
white balance auto
power source dc12v
dimension ф120 x 85h mm
weight 1700g
pack 530x330x390mm
