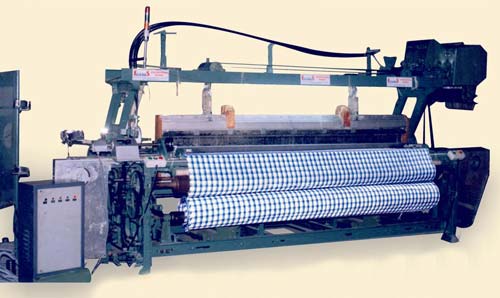

Weaving Machine

Supply TypeManufacturer
Preferred Buyer Location All over the world

We are the renowned Weaving Machine Manufacturers, Exporters and Suppliers in Panipat, Haryana. Our Weaving Machines are fabricated with the use of the best quality components that ensure high functionality. Our Weaving Machines are resistant to early wear and do not get corroded. These Weaving Machines have user-friendly operations and can be easily operated. Economically prices, our Weaving Machines result in perfect weaving in lesser time. Why Our Weaving Machine? Ease in operationLow noiseSteady weft insertionsLow maintenance

View More Details

Send Enquiry

Product Details

Specifications

Driving System	1.5 K.W. & 2 K.W. Motor (A.C.)
Braking System	By Electro Magnetic Brake Motor with Excellent Torque
Max" Mech RPM	200 to 220 RPM
Reed Space (MNB)	60" to 110" & Effective Reed Space 48" to 96"
Weft Insertion	By Flexible Rapier with Both Side Guide
No. of Weft Colour	04 As Standard - By Dobby 08 As Standard - By Dobby
Weft Detection	By Piezo Electric Crystal Sensor
Shedding	Over Head Dobby with Maxim 25 shaft Capacity Tappet (Optical) & J/Q (Optical)
Cloth Roll DIA	300 mm (Max)
Warp Stop Sensor	06 Row Electrical Type
Weft Feed	04 Colour Creel (Standared) 08 Colour Creel (Optional)
Selvedge	Leno Two Thread - (Standard) Tuckers (Optional)
Take Up	07 Pick Less
Let off	Mech - Type (Semi Positive)
Beam Flange Dia	500 mm to 550 mm
Transmission of Picking	By Mobile Sley Kit
Frame Construction	Rubust & Sturdy
Note : We also manufacture All type of Power looms warping machine cone winder pirn winder jacquard machine, shuttleless Looms Machine & Textile Machine
