Wedge Mounts - Series DF, Brand Name : Dynemech

MaterialVarious Materials
Brand NameDynemech
FeaturePrecision Leveling, Adjustable Bolt, Anti-skid Plate, Vibration Reduction
Number Of FlowerWedge Mounts
Supply TypeManufacturer
Preferred Buyer Location India only

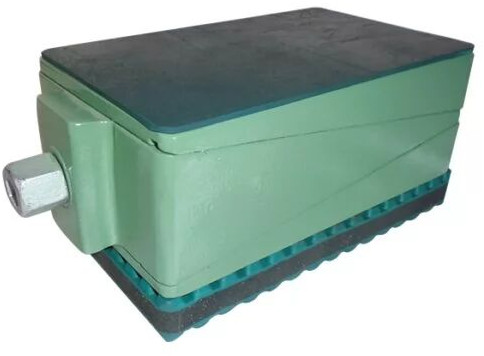

Dynemech wedge mounts are designed for industrial machine tools that require precision leveling. This 3-piece wedge mount has an adjustable bolt which moves the center wedge between top and bottom stationery wedges to provide lift, to the top wedge. Anti-Skid plate is provided on the top wedge therefore, machines are installed as free standing. Large supporting surface ensures solidity and rigidity. Vibration reduction is possible through assembling respective Dynemech insulation plates.

View More Details

Send Enquiry

Model-DF Series M

Model	Load Capacity Kg/pc	Length (L) mm	Width (B) mm	Height (H) at mean position (mm)
DF1-m	500	105	55	54
DF2-m	1200	150	75	57
DF3-m	2000	200	100	64
DF4-m	4000	200	200	67
DF5-m	5000	200	250	67
DF6-m	8000	250	320	87
DF7-m	12000	300	400	92
DF8-m	20000	400	500	97

Model	Load Capacity Kg/pc	Length (L) mm	Width (B) mm	Height (H) at mean position (mm)
DF1-u	400	105	55	60
DF2-u	900	150	75	63
DF3-u	1500	200	100	70
DF4-u	3200	200	200	73
DF5-u	4000	200	250	93
DF6-u	6400	250	320	98
DF7-u	9600	300	400	98
DF8-u	16000	400	500	103

Model	Load Capacity Kg/pc	Length (L) mm	Width (B) mm	Height (H) at mean position (mm)
DF1-s1	280	105	55	59
DF2-s1	560	150	75	62
DF3-s1	1000	200	100	69
DF4-s1	2000	200	200	72
DF5-s1	2500	200	250	92
DF6-s1	4000	250	320	97
DF7-s1	6000	300	400	97
DF8-s1	10000	400	500	102

Model Load Capacity Kg/pc Length (L) mm Width (B) mm Height (H) at mean position (mm) DF1-s2 350 105 55 64 DF2-s2 800 150 75 67 DF3-s2 1400 200 100 74 DF4-s2 2800 200 200 77 DF5-s2 3500 200 250 97 DF6-s2 5500 250 320 102 DF7-s2 8500 300 400 102 DF8-s2 14000 400 500 107

Model	Load Capacity Kg/pc	Length (L) mm	Width (B) mm	Height (H) at mean position (mm)
DF1-i	600	105	55	70
DF2-i	1500	150	75	73
DF3-i	2500	200	100	80
DF4-i	5200	200	200	83
DF5-i	6500	200	250	103
DF6-i	10000	250	320	108
DF7-i	15000	300	400	108
DF8-i	26000	400	500	113
