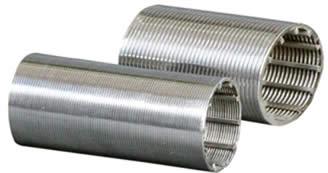

Wedge Wire Screen – V-shaped Profile Wire Welded Screen

we are offering wedge wire screen – v-shaped profile wire welded screen. wedge wire screen is a welded structure with v-shaped profile wire welded to support ribs. it combines superior weld strengths & precision slot tolerances. the distance between two neighboring wires mainly depends on the formation and sand size. continuous slots allows for high production and no-clogging. appropriate slot spacing is a vital element in selection an appropriate sand screen. it is widely used in water, oil and gas wells.
v shaped wire screen can be used as standalone or as outer jacket for wire wrapped pipe based screen or pre-packed sand screen. keystone shaped slots provides free flow and optimize sand control.
product description:
?material: aisi304aisi316l stainless steel wire or high strength carbon steel wire;
?inside diameter: 2”, 3”, 4”, 5”, 6” & 8”;
?minimum slot opening: 0.05mm;
?profile wire width: 1.5mm to 3.7mm;
?support rib width: 2.3mm to 3.7mm.
feature & advantage:
?precision and uniform slot spacing;
?high open area;
?resist plugging and prevent sand from damaging pumps;
?minimum drawdown and less energy usage by a pump;
?minimum pressure drop.
wedge wire screen specification
profile v wire
width (mm)
1.50 1.50 2.30 2.30 1.80 3.00 3.70 3.30
height (mm)
2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30
support wire
