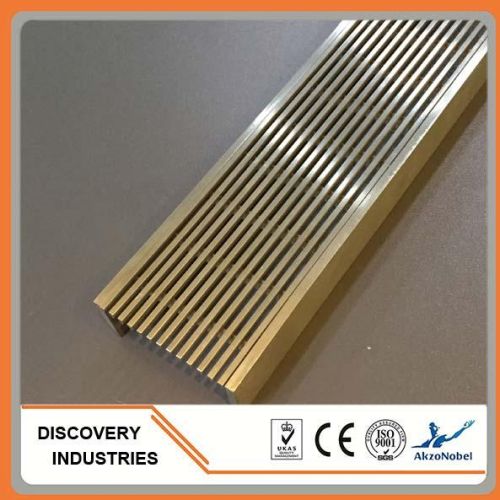

Wedge Wire Shower Drain, Packaging Type : Silver

Stainless steel 304 linear shower drain
Product Description
Introduction of the Stainless Steel Linear Drain:
The Stainless Steel Linear Drain stainless steel drainage is the most important port to connect the system of drainage channels and the flooring.
As the most important parts of the drainage system in the house, its performance is directly effect the quality of the indoor air, and it is also very important to control the peculiar smell of the bathroom.
The Stainless Steel Linear Drain is mainly used in bathroom, kitchen, washroom, swimming pool or other wet rooms.
Specifications of the Stainless Steel Linear Drain:
The wedge wire grate is composed of two parts, one is the grate panel, the other is trough channel.
Details of the wedge wire grate :
Material: ss 304
Wedge wire: 3x4.2mm, 3.2mm spacing
Supporting wire: 3x6mm, 25mm spacing
Frame: 22.8x5mm
Width: 63mm, 75mm, 98mm, 100mm
Length: 100mm, 200mm, 500mm, 1000mm etc.
Details of the Trough Channel:
Material: ss 304
Plate thickness: 1.2mm
Width: 70mm or 100mm
Length: 300mm or 500mm or 800mm or 1000mm etc.
Outlet: horizontal, with deodorization device, 40mm diameter
Frame: with flange, which is have a better function of waterproof.
We can also customize it according to customers' drawing.
Application of the swimming pool stainless steel drainage:
Bathroom ,Balcony ,Kitchen
1>.Drainage fast , always keep the bathroom dry and clean , enhance the level of non-slip surface
2>.Increase three dimensional sense of space ,do not use stone to separate dry and wet areas again ,and don't use any other Stainless Steel Linear Drain
3>.Save the time of construction , using the drainage of same gradient, construction of simple ,maintain tile integrity and beautiful appearance .
