SpecificationDetails
| Device Model | CR-38060SM |

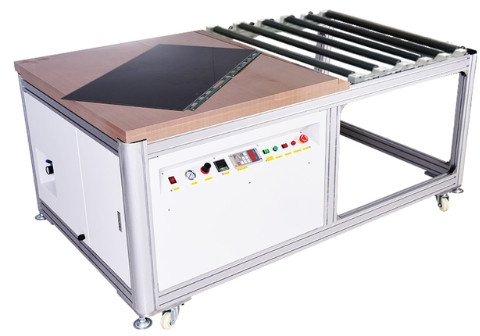

| Device Name | LCD Screen Polarizing Tear Film Machine |
| Working Principle | Manually tear a diagonal opening of 8-10 cm, fix it on the tearing film roller using adhesive tape, and start the high-power inverter motor to peel off the polarizer. |
| Equipment Use | Used in LCD assembly and rework processes to strip polarizers from LCD panels with surface scratches or defects, ideal for large and thin LCD panel polarizer lift-off. |
| Suitable Panel Size | One-time operation for panels up to 46 inches; more operations needed for panels larger than 46 inches. |
| Key Function Characteristics | – High-precision concentric hobbing steel wheel for uniform peeling without slipping or deformation. – Nine concentric anti-static rubber rings reduce breakage rate from non-horizontal force or movement resistance. – PID temperature controller with self-tuning function for precise speed control. – Customizable specifications to meet customer requirements. |
| Input Power | AC 220V, 50-60 Hz |
| Rated Power | 2-6 KW |
| Working Pressure | 0.4-0.8 MPA |
| Peeling Off Speed | Adjustable |
| Heating Method | Constant temperature |
| Temperature Range | RT-500℃ (adjustable) |
| Thermocouple | K-type |
| Operating Mode | Button operation |
| Equipment Material | Steel, electrophoresis aluminum, iron, plastic |
| Equipment Packaging | Wooden boxes made of glued board (no fumigation required for export) |
| Dimensions (L x W x H) | 2000 x 1200 x 910 mm |
| Package Size (L x W x H) | 2150 x 1340 x 1240 mm |
| Net Weight | 260 kg |
| Gross Weight | 340 kg |
