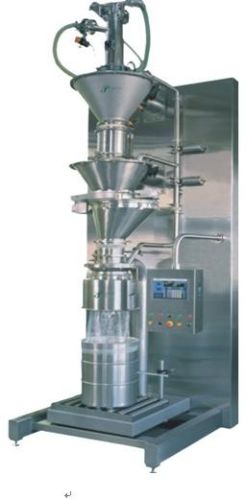

Weighing Packaging System, Brand Name : Partek

We are offering weighing packaging system.
Introduction
weighing packaging system of bulk material is used to process and simultaneously measure and package the bulk material under the hermetic condition in order to improve productivity.
Features:
1.advanced technique of convey, measurement and filling of bulk material
2.accurate measuring system with a precision of ±0.2
3.delicate design can save energy and space
4.perfect technical support and after-sale services system
5.the whole process flow of crushing, milling filtering, pelletizing, conveying, measuring and filling bulk material is integrated in the system
application
1. Bag from 20 l to bigger one
2. Filling capacity: 50-8000kgh;
3. Applicable to explosion-proof area and in line
with atex standard.
4. Meet the cleaning requirement of wipcip (optional)
5. N2 protective device
6. The equipment can be fixed inside the laminar
flow room
optional parts:
1. opening strut or rolling sealing device in the inner bag of the bin
2. inner bag support device fixed on the automatic connecting piece
3. air charging device before inner bag filling
4. exhaust device before inner bag sealing
5. wipcip cleaning device
6. n2 protective device
7. bag from 20-200 l
8. inner bag calibre: 300-800mm
controller:
1. with weight display and function button
2. can be customized according to customer’s requirement
air-powered bag clamping device:
1. absolutely dustless and hermetic connection precludes any pollution to the material.
2. simple hand operating system
3. applicable for sack filling such as paper bag, plastic bag, etc
4. one-piece, sanitary appearance design is spacesaving
5. no contact between operator and material and the cleaning is fast and convenient
6. no power source is needed; all can be done by compressing air
7. widely applicable for the transportation and rationed filling of bulk material in the field of pharmaceuticals, foodstuff, chemical industry, etc.
