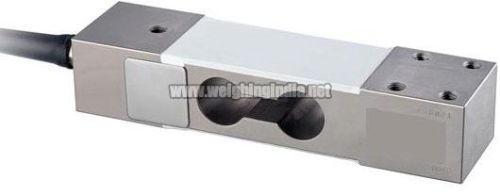

Weighing Scale Load Cell (SS 410)

Load Capacity50kg
Truck ScaleSteel
Input resistance702 +-10 Ohm
Operting Temperature-10 to 40 degree C
ApplicationTruck Scale
Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

Product Details

Operting Temperature-10 to 40 degree C
ApplicationTruck Scale
Load Capacity50kg
Truck ScaleSteel
Input resistance702 +-10 Ohm

Clients can avail Weighing Scale Load Cell (SS 410). From us. We make available precision engineered Weighing Scale Load Cell that is in extensive demand. Light in weight and compact, the Weighing Scale Load Cell is known for its reliability.

Features

Single point capability for platform scale
Low profile
Centre loading
Minimum error for OFF
Supports the pan size of 750 x 750 mm
100 kg. To 1500 kg. Capacities
Compact and light weight

Application : Hygienic applications like food, dairy & pharma industries and corrosive applications like chemical industries.

Specifications

Standard Capacities	100, 150, 200, 300, 500, 750, 1000, 1500 kg
Excitation Voltage	10 VDC- Maximum 15 VDC
Nominal Output	2.0 m V/ V
Non - Linearity	< 0.025% FSO
Hysteresis	< 0.02% FSO
Non-Repeatability	< 0.01% FSO
Creep (30 minutes)	< 0.03% FSO
Zero Balance	?1.0% FSO
Input Resistance	390 15 Ohms
Output Resistance	350 5 Ohms
Insulation Resistance (50 VDC)	> 1000 Mega Ohms
Cable Length (4 Core Screened)	3 mtr. Minimum
Safe Overload of Rated Capacity	150.00%
Ultimate Overload of Rated Cap.	250.00%
Temp. Compensated Range	0-60 C
Temperature Effect on Output	< 0.0015% FSO/ 0 C
Temperature Effect on Zero	< 0.0020% FSO/ 0 C
Eccentric Load Effect	< 0.02% of FSO at 1/3 rated load placed within the specified sized platter
Deflection	< 0.5 mm at FSO
Tightening Torque	5 m.kg.
Finish & Construction	Electroless Nickel Plated Tool Steel
