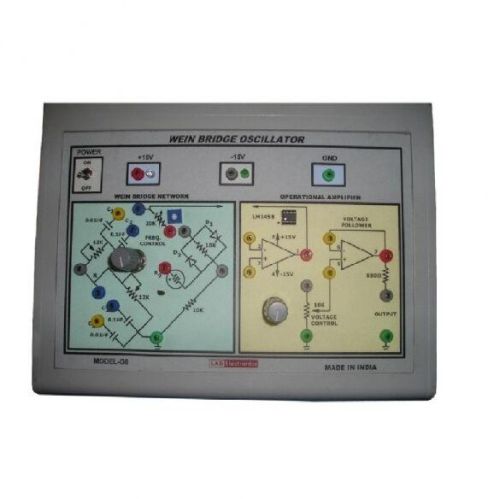

WEIN BRIDGE OSCILLATOR

₹ 3,950 / Piece

Built in regulated power supply+15V And -15V/300 mA.
Housing Enclosed in an elegant plastic injection molded cabinet for better viewing & portability.
Input Supply230V AC/50 Hz mains operated
UseTo construct a Wein-Bridge Oscillator and determine the resistor ratio to develop the correct degenerative feedback. To insert a simple automatic gain control (AGC) and observe the effect, it has on oscillator operation.
Supply TypeManufacturer, Exporter, Supplier, Retailer, Trader
Preferred Buyer Location All over the world

Product Details

Dimension27cmX 17cm X 10cm
Instruction ManualStep-By-Step detailed instruction manual.
Weight500 Gm.
Built in regulated power supply+15V And -15V/300 mA.
Input Supply230V AC/50 Hz mains operated
UseTo construct a Wein-Bridge Oscillator and determine the resistor ratio to develop the correct degenerative feedback. To insert a simple automatic gain control (AGC) and observe the effect, it has on oscillator operation.
Housing Enclosed in an elegant plastic injection molded cabinet for better viewing & portability.
