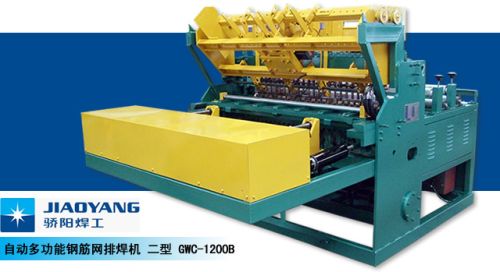

Welded Mesh Machine, Certification : ISO9001:2008CE

We are offering welded mesh machine.
1.this machine adopts synchronous technique, both welding time and cent-control welding is composed of digital and integrated electric circuit.
2. This operation is accurate, it has stable function, firm welded point and without welded tracks, not only welding speed is fast but also it is easy to learn and operate.
3. The line wires are fed from rolls and through precise wire straightening and positioning devise.
4.step motor controls fallen wefts structure and drawing materials are automatic (this technology has won the national patent zl200520024381.3) so it is even and accurate, the edges of mesh are regular, it is unnecessary to slice the side. 5.drawing mesh adopts the divece with the elastic tension link (which met the national patent zl200520024380.9) and fixing the mesh,
6. It is easy to regulate mesh holes and mesh size is rather accurate, welding spertures could also adjust randomly within the range.
7. The speed of this machine is very fast. It is easy to learn and only needs two works to operate. The finished mesh could be in rolls or in panels.
the main parameter
wire diameter:3-5mm
space of cross wires:50-200mm
space of line wires:50-200
width of mesh:2500mm
welding speed:60 timesmin
number of electrodes;48
feeding of line wire:coil
feeding of cross wires: pre- straightened and cut
rated voltage:380v
rated electrical power: 125kva*6
overall dimension:2200*2600*1800mm
machine weight:4.5t
