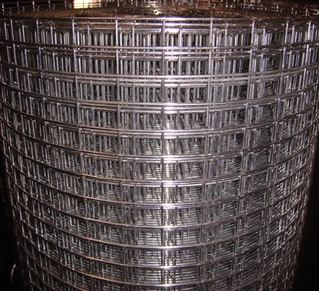

Welded Wire Mesh, Wire Gauge : 1-5mm

We are offering welded wire mesh.
Material :low carbon steel q195, stainless steel wire.
Surface treatment:balck (mild steel wire)
electro galvanized ,(galvanized before welding, galvanzied after welding)
hot dip galvanized,  ,(galvanized before welding, galvanzied after welding)
pvc coated wleded wire mesh, (black wire mesh then pvc coated,electro gal. Then pvc coated , hot dip gal.the pvc coated)
stainless steel welded wire mesh(ss302, ss304, ss304l) .
Features : smooth and trim mesh surface, solid and uniform structure and superior integral performance, it won't loosen even subject to local cutting or pressure, it has the characteristics of corrosion-resisting and oxidation-resisting
packing:moist-proof paper , shrink bag , loose packing , pallet or special packing can
be arranged upon request
application: widely used in the industry ,agriculture ,construction,transport and mining .such as machine protection cover ,ranch fender ,garden fender ,window protection fender ,passage fender ,fowl cage ,egg basket and foodstuffs basket.
Opening wire diameter(bwg)
in inch in metric unit(mm)
14" x 14" 6.4mm x 6.4mm 22,23,24
38" x 38" 10.6mm x 10.6mm 19,20,21,22
12" x 12" 12.7mm x 12.7mm 16,17,18,19,20,21,22,23
58" x 58" 16mm x 16mm 18,19,20,21,
34" x 34" 19.1mm x 19.1mm 16,17,18,19,20,21
1" x 12" 25.4mm x 12.7mm 16,17,18,19,20,21
1-12" x 1-12" 38mm x 38mm 14,15,16,17,18,19
1" x 2" 25.4mm x 50.8mm 14,15,16
2" x 2" 50.8mm x 50.8mm 12,13,14,15,16
