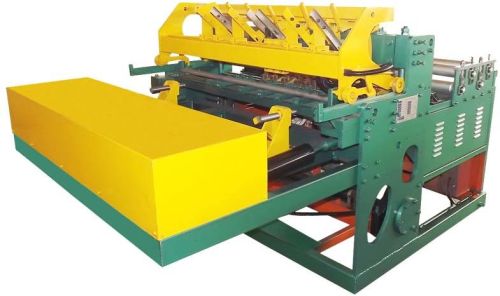

Welded Wire Mesh Machines

We are offering This machine adopts electrical & electronic synchronous control technique, both separate-phase welding and welding time is composed of digital and integrated electric circuit. This operation is accurate,it has stable function ,firm welded point and without welded tracks.
Cross wires are needed to be pre-straightened and cut ,then put into the cross wire hopper.Step motor in the hopper controls fetching the cross wire and feeding the cross wires into welding automatically (this technology has won the nation patent ZL200220024381.3)
The line wire is fed from coil.The edge of mesh is regular and it is unnecessary to slice the mesh edge.
Mesh pulling system adopts elastic tension link and mesh opening size opposition system,it is easy to regulate the mesh hole and mesh opening size is rather accurate,welding aperture could adjust randomly with range. Not only welding speed is fast but also it is easy to learn and operate.Only two men can finish the operation.
The finished products can be in coil or in panel.
Wire diameter 3--5mm Line wire feed continuous
Cross wire space ≥24mm Cross wire feed Pre cut
Line wire space ≥25mm Rated voltage 380V
Width of mesh 1000mm Rated electical power 63KVA×2
Welding speed 45timesmin Overall dimension 1800×2500×1800mm
Number of warp 16 Machine weight 3.2T
