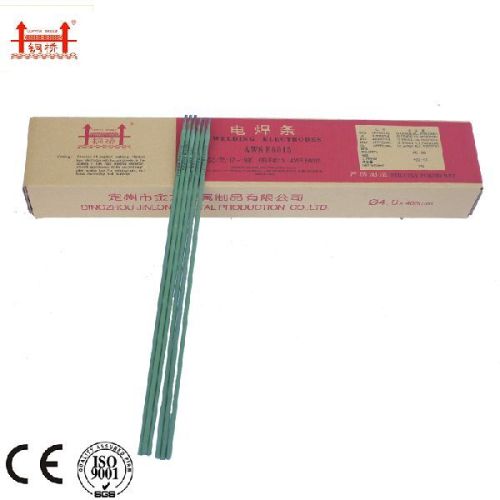

Welding Electrode Rod E6013

1/8" factory price high quality welding welding electrode rod 6013 E6103 is high Potassium titanium coated carbon steel electrode. Ac/Dc, for all position welding. Stable arc, Fewer spatters Easy to restrike, Less smog ,Good off slag, high deposition efficiency excellent welding technological performance, For welding low-carbon steel structure, especially suitable for welding on thinplates and cosmetic welding. Product Description The chemical composition of deposited metal: Weld metal chemical composition;   C Mn Si S P Guarantee value ≤0.12 ≤1.60 ≤0.75 ≤0.035 ≤0.040 Weld metal mechanical properties: Test project Rm (Mpa) Rel (Mpa)) A (%) Akv(J) 0°C Guarantee value ≥ 490 ≥ ≥400 ≥22 ≥27 X-ray inspection requirements:Ⅱ Welding reference current:(AC/DC): Electrode diamete(mm) 2.5 3.2 4.0 5.0 Welding current(A) 50-90 80-130 150-200 180-240 SIZE(MM) WIGHT INNER PACKING(MM) OUTER PACKING(MM) 2.5×300 2.5kg/box 8boxes/carton=20kg 310*80*60 320*170*120 2.5×350  5kg/box 4boxes/carton=20kg 360*80*60 360*170*120 3.2×350  5kg/box 4boxes/carton=20kg 360*80*60 360*170*120 4.0×400  5kg/box 4boxes/carton=20kg 410*80*60 420*170*120 5.0×400  5kg/box 4boxes/carton=20kg 410*80*60 420*170*120 inner boxes is a shrink-wrapped cardboard box ,
