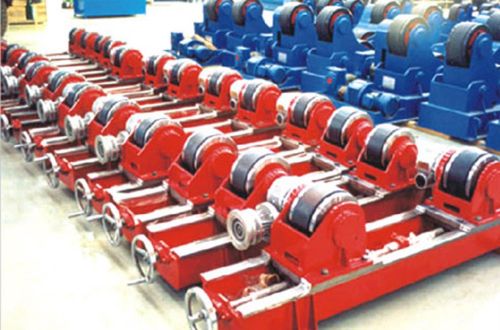

Welding Roller

Self-aligned welding roller (adjustable roller)
Self-aligned Welding turning roller can adjust the center distance by reserved screw holes or lead screw in order to adapt to diameter of work piece.
Double-motor driven, the roller driver adopt Planet-cycloid Reducer or worm reduction gear mode.
According to the customer's requirements, the roller has three forms: sub-rubber tire roller, steel wheels, steel and plastic combination wheel; it can joint control with other equipments.
Model No.
HG1/HG1W-5
HG1/HG1W -10
HG1/HG1W -20
HG1/HG1W -30
HG1/HG1W -40
HG1/HG1W -50
HG1/HG1W -60
HG1/HG1W -80
HG1/HG1W -100
Loading (t)
5
10
20
30
40
50
60
80
100
Shell Diameter
Min(mm)
250
350
600
600
600
750
800
900
900
Max(mm)
2000
2500
4000
4500
5000
5000
5000
5500
5500
Roller speed(m/h)
6-60
6-60
6-60
6-60
6-60
6-60
6-60
6-60
6-60
Motor power(kw)
2×0.18
2×0.25
2×0.37
2×0.37
2×0.55
2×0.75
2×0.75
2×1.1
2×1.5
Regulating mode
Frequency control
Dimension
Length(mm)
Active1410
Passive1270
Active 1585
Passive1450
Active 2165
Passive2125
Active 2410
Passive2410
Active 2410
Passive2410
Active2600
Passive2600
Active2600
Passive2600
Active3020
Passive3020
Active3020
Passive3020
Width(mm)
Active800
Passive340
Active872
Passive392
Active1010
Passive425
Active1260
Passive550
Active1290
Passive550
Active1360
Passive590
Active1360
Passive590
Active1745
Passive760
Active1770
Passive760
Height(mm)
670
660
945
1125
1135
1135
1135
1400
1400
