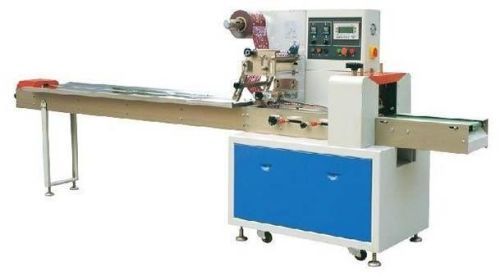

We are offering horizontal flow wrapping machine.
Applications:
various kinds of objects with regular shape like biscuits, instant noodles, towels, bread, cakes, pies, candy, ice-cream, medicine, commodity, hardware, detergent, industrial components etc.
Features:
l simple operation
l easy maintenance
l durable
l efficient follow-up service
descriptions:
1. dual frequency conversion control, bag length can be set and cut on one step, saving time and film.
2. interface features easy and quick setting and operation.
3. self failure diagnosis, clear failure display.
4. high sensitivity photoelectric eye color tracing, numerical input of cutting sealing position for extra accuracy.
5. temperature independent pid control, more suitable for packing different materials.
6. positioned stop function, without sticking knife or wasting film.
7. simple driving system, reliable working, convenient maintenance.
8. all control is realized through software, easy for function adjusting and technical upgrade.
specifications:
type
bt-250b
bt-250d
bt-250s
film width
max.250mm
max.180mm
bag length
65-280mm
90-220mm
45-90mm
bag width
30-110mm
30-80mm
product height
　max.40mm
max. 55mm
max.35mm
film roll diameter
　max.320mm
packing speed
　40-230 bags/min
60-330 bags/min
power
　220v,50/60hz,2.4kw
machine size
　(l)3770×(w)670×(h)1450
machine weight
　800kg
model
bt-350b
bt-350d
film roll width
max.350mm
bag length
120～280mm or 65~190mm
150~330mm or 90~220mm
bag width
50～160mm
bag height
max.45mm
max. 60mm
film roll outer diameter
max.320mm
packing speed
40～230bag/min
power source
220v,50/60hz,2.6kva
machine dimension
(l)4020×(w)745×(h)1450
machine weight
900kg
model
bt-400b
bt-400d
film roll width
max. 400mm
bag length
130-320mm
180-440mm
bag width
50-190mm
bag height
max.45mm
max.60mm
film roll outer diameter
max. 320mm
packing speed
40-230bag/min
power source
220v,50/60hz,2.6kva
machine dimension
(l)4020x(w)770x(h)1450
machine weight
900kg
