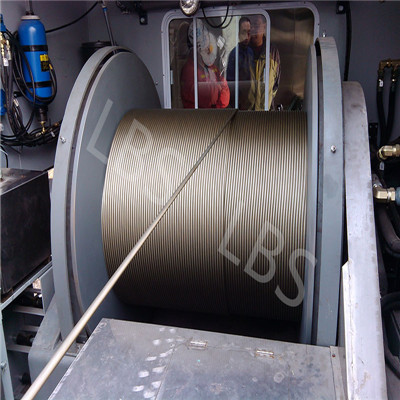

Well Logging Equipment Hydraulic Winch

Bases:
FIxed type or moveable type
Product specification:
Custom-made (according to actual )
machining equipment:
CNC machining center
Product advantage:
Our factory mainly in the service of hoisting machinery, Marine machinery, petroleum machinery, hydraulic machinery, engineering machinery and other industries, the main products are oil drilling rig, workover rig, drifting machine, trailermounted pumping unit� winch (The main drum is used lebus grooved drum) and oil equipment accessories.
The company focus on developed the lebus wire groove, solved the chaos in the process of winding rope, wire rope bit rope major problems.Lebus groove system smooth of wire rope winding, uniform distribution of load between each layer, practice has proved that this technology greatly prolong the service life of wire rope, have data to show that can extend the service life of wire rope by more than 500%, reduce the damage of steel wire rope improves security, and reduces the mechanical equipment in line outage problem.
Technical parameters and application:
No: Wire diameter
(mm): direction Main drum diameter(mm)
Main drum length(mm)
application
1 13 Lefthand 430 763 The oil workover rig
2 18 Lefthand 623 1144
The oil workover rig �Logging Winch drum
3 22 26 Lefthand�Righthand 730 1120 Drilling Rig Winch drawworks
4 18 22 32 Lefthand�Righthand 670 1240 hoist
5 28 32 36 Lefthand�Righthand 560 630 Rotating Drilling Rig winch�Lifting equipment
6 26 45 Lefthand�Righthand 760 1146 1970 1765 Offshore Crane�Marine crane �wharf crane
