Well Testing Equipment

Design & Process

• All equiment is suitable to H2S service per NACE standards.
• API6A for 5000 psi equipment and above.
• API12J for Test Separator.
• ASME VIII for pressure vessels and ANSI B31-3 for piping.
• DNV 2.7.1 or 2.7.3 for offshore containers and skids as option.
• CE Marking and PED compliance as option.
• 5000 / 10000 / 15000 bbl/d Max liquid flowrate capacity (other capacity on request).
• 55 MMscf/d Max gas flowrate capacity (other capacity on request).

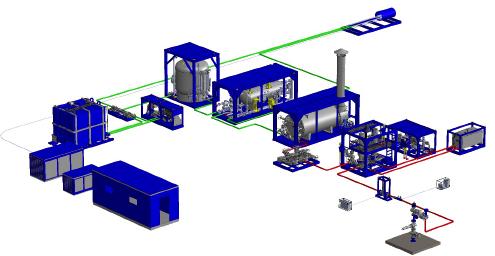

Unique flexible design
Each skid mounted design comes with a wide range of integrated and interchangeable options that allow easy and cost-effective modifications to match with variable field and process conditions.
