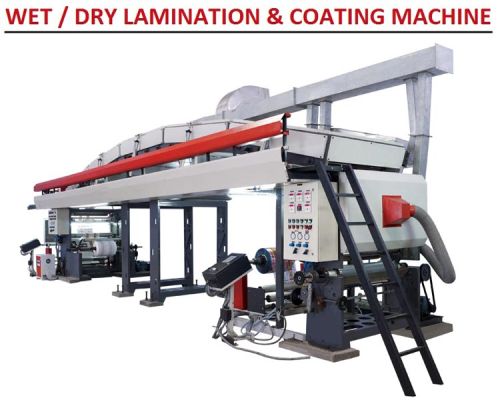

Our Wet Lamination and Coating Machine (Code : SI-LCM) is widely used for laminating and coating of rolling materials such as BOPP, PET, CPP, CPE, nylon, aluminum foil, paper, polyester, film, LDPE, etc. The compounded material has the functions of high strength, high fresh, high braise-proof, etc. Wet Lamination and Coating Machine that we offer is widely acknowledged for features like high operational fluency, dimensional accuracy, sturdy construction, air shafts on both unwinder and rewinder, safety chuck on both unwinder and rewinder and uniform heating system. Our Wet Lamination and Coating Machine has the capability to make lamination foils in different sizes, dimensions and thickness.
Optional Accessories :
Note :
|
Working Speed |
100 M/min to 200 m/min |
|---|---|
|
Max. Web width |
600 / 800 / 1000 / 1200 mm |
|
Unwind Roll Dai. |
600 / 800 mm |
|
Rewind Roll Dai. |
600 / 800 mm |
|
Drying Tunnel Length |
15 to 45 feet or as per your specification |
|
Drying Section |
Multi-zone arch type (5 to 8 Nos. drying zones with separate heaters & blowers) |
|
Heat Source |
Electrical / Hot Air |
|
Coating Section |
Gravure / Reverse Roll |
|
Laminating Section |
Chilling / Heating Roller with Pneumatic Nip Roll |
|
Drive |
Variable Speed: DC/AC |
|
Temperature Meter |
Auto digital temperature meters for all the zones |
|
Nipping |
Hard chrome finished ground M S Roller with heater and rubber roller operated pneumatically |
|
Unwinding |
Stations are provided with mechanical friction brake or automatic tension control |
|
Rewinding |
A C or D C |
