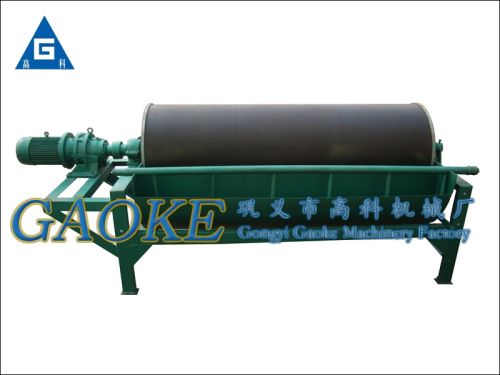

Wet Mineral Magnetic Separator

We are offering wet mineral magnetic separator, introduction of wet magnetic separator, wet magnetic separator is a kind of permanent magnetic separator. As a response to the iron ore mining, wet magnetic separator stands out in iron separation, because of its large capacity, high recovery rate and obvious effect. as time goes on, it has been a trend of development and utilization to lean ore. As their magnetic permeability is generally low, the ordinary permanent magnet wet magnetic separator can’t play a role to deal with lean ore.
Working principle of wet magnetic separator
after pulp flowing into the tank through the mine box, under the action of water in the spray pipe to the mine, mineral particles were loose state into the tank to feed mine. Under the magnetic field, the magnetic ore particles cause magnetic agglomeration and form "magnetic group" or "flux linkage ", "magnetic group" or "flux linkage " in the pulp by the magnetic force moves to the pole, and to be adsorbed on the cylindrical . Since the polarity of the magnetic poles along the cylinder rotation direction is alternately arranged and fixed at work,when the magnetic group "or" flux linkage " rotate with the cylinder ,as the magnetic poles alternating generated magnetic stirring, non-magnetic minerals such as gangue that are contained in the “magnetic group "or" flux will fall down ,eventually the “magnetic group "or" flux absorbed in the cylinder surface are fine ores. The fine ores with cylindrical go the weakest magnetic edge of the magnetic system, under the action of water spray flushing discharge water pipe from ,is unloaded into the concentrates tank. Non-magnetic or weakly magnetic minerals are left in the pulp and discharged from tank, which are tailings.
Structure characteristics of wet magnetic separator
we transformed the wet magnetic separator structure, so that it applies to the wet-election to fine particles of strong magnetic minerals, or removing non-magnetic minerals mixed in the strong magnetic minerals. The effect also is very prominent of sorting weakly magnetic minerals. This kind of magnetic separator can be fed and discharged continuously with its intensive magnetic field, big work clearance and large treatment capacity.
The same one cylinder can be equipped with three kinds of tank, downstream slot (cts), counter-current slot (ctn) and half counter-current slot (ctd), in order to adapt to the different sorting requirements. Downstream slot ore particle size suitable for 0 ~ 6mm roughing and selected. Cts is used in the separation of the coarse and fine ore 0-6mm and the ctd is used to separate the coarse and fine ore from 0mm to 6mm and to recycle the heavy-medium in the coal industry while the ctd is used in separation of the coarse and fine ore from 0mm to 0.5mm and esp. The separation of the fine ore from 0mm to 0.15mm.
Features
1, continuous feeder
2, large capacity
3, high magnetic field strength
4, clean separation
5, easy maintenance
