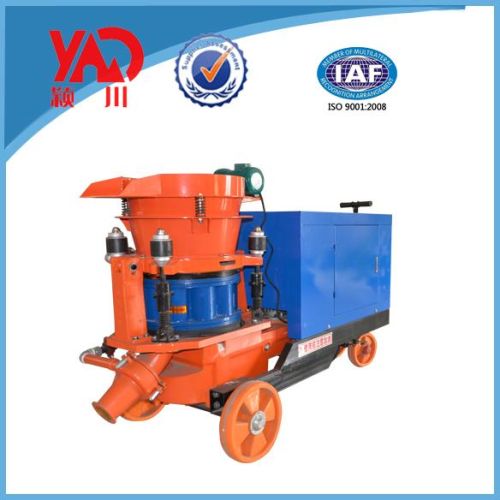

Wet Mix Concrete SMachine Hsp-5 Model, Brand Name : Yingchuan

We are offering wet mix concrete spraying machine hsp-5 model.
this hsp-5 wet mix shotcrete machineryconcrete spraying machine can be widely used in tunnels, hydro-power engineering, underground engineering, civil engineering and slope stabilization, artificial aoil aeeding for no soil surface, such as rock, sand, and for no fertility soil surface,refractory spraying and repair for industrial kilns or kilns’ inner liner,etc.
Technical parameter:
output:4-5m³h
max. Convey distance:horizontal:30m; vertical: 20m
max. Aggregate size:ø 15mm
hose inner size:ø 51mm
operating pressure:0.3~0.6mpa
air consumption:10-15m³min
rotor diameter:ø 438mm
average rebound rate:≤10%
liquid accelerator additive amount:0.3-0.7%
motor power:y132m-6-5.5kw
voltage:380v or as your request
accelerator metering pump:air motor
dimension:1950mmx800mmx1280mm
net weight:700kg
